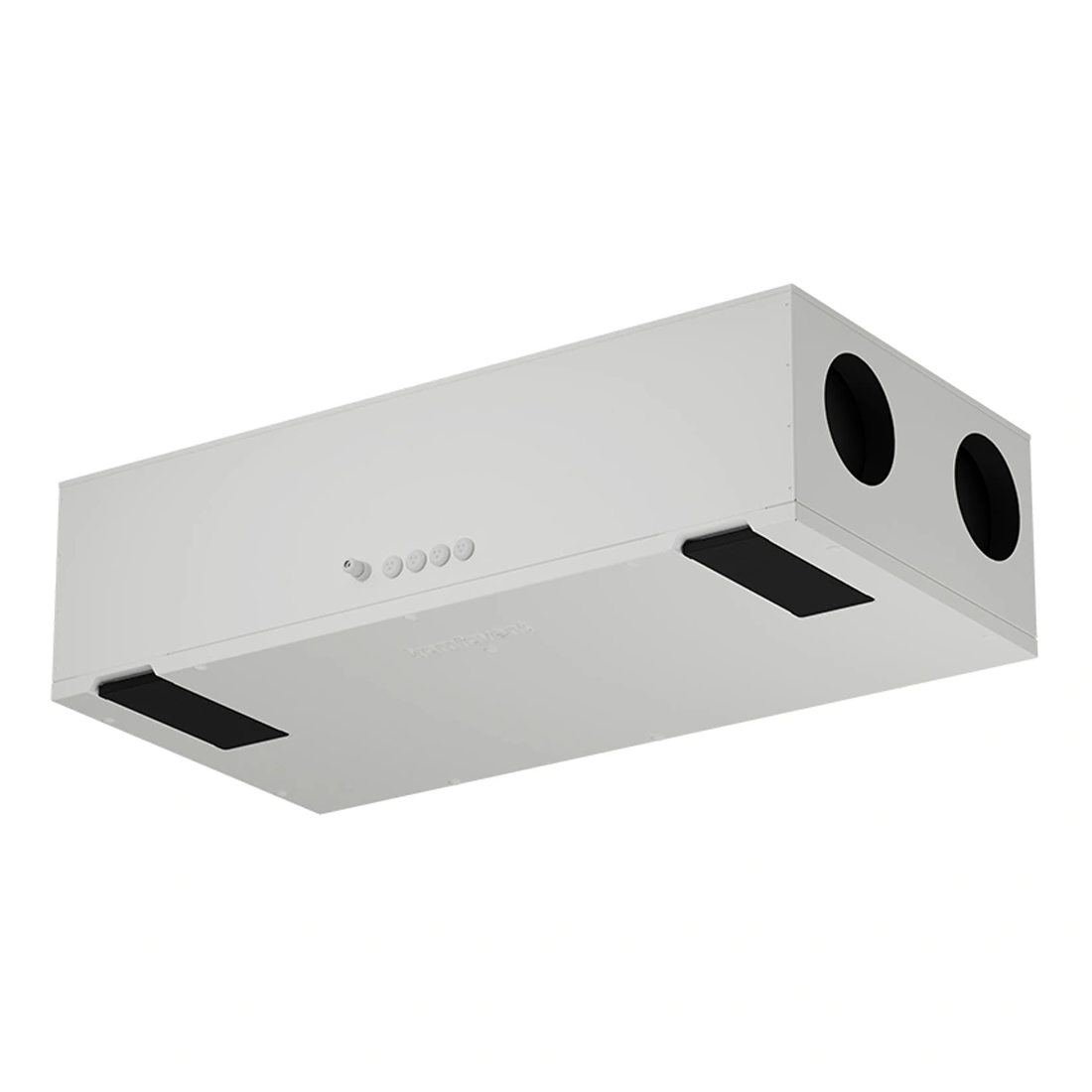

CF-150F Counterflow - Ceiling unit (use C6 controller) - EPP
CF-150F Counterflow - Ceiling unit (use C6 controller) - EPP
SKU : Domekt-CF-150F-L1-F7/M5-C6M-C
Overview
Compact yet powerful, this energy-efficient ventilation unit is tailored for smaller living spaces, offering a maximum airflow of 202 m³/h with an A+ energy class rating. It is engineered to deliver superior indoor air quality and thermal comfort even in demanding cold climate zones.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand CF-150F Counterflow - Ceiling unit - Domekt-CF-150F-L1-F7/M5-C6M-C
Right Hand CF-150F Counterflow - Ceiling unit - Domekt-CF-150F-R1-F7/M5-C6M-C
Product Overview
Compact yet powerful, this energy-efficient ventilation unit is tailored for smaller living spaces, offering a maximum airflow of 202 m³/h with an A+ energy class rating. It is engineered to deliver superior indoor air quality and thermal comfort even in demanding cold climate zones.
Equipped with two integrated heaters and a smart C6M control system, the unit ensures reliable year-round operation. The incorporation of advanced EPP (Expanded Polypropylene) technology provides enhanced insulation with no thermal bridges, significantly improving efficiency and minimizing energy losses.
The ventilation system includes two advanced heat exchangers: a condensing counterflow plate heat exchanger effective down to -4°C for humidity control during winter, and a diffusion-enthalpy counterflow heat exchanger that saves energy, maintains balanced humidity, and resists icing.
Smart features such as 100% free cooling using outdoor air, CAV (Constant Air Volume) airflow control, and automatic ventilation adjustment based on CO₂, VOC, or RH sensors make this system a fully automated and intelligent solution. Integrated web control and energy monitoring tools ensure complete control and transparency.
Technical Specification
| Feature | Details |
|---|---|
| Maximum Air Flow | 202 m³/h |
| Energy Class | A+ |
| Control System | Smart C6M with integrated web server (Internet control) |
| Heaters | Two integrated heaters (optimized for cold climates) |
| Thermal Insulation | EPP technology – enhanced insulation, no thermal bridges |
| Defrost Technology | Smart defrost system |
| Heat Exchanger Type 1 | Condensing counterflow plate heat exchanger (effective to -4°C; excellent humidity control in cold seasons) |
| Heat Exchanger Type 2 | Diffusion-enthalpy counterflow plate heat exchanger (energy recovery, humidity regeneration, anti-icing) |
| Humidity Management | Effective dehumidification and regeneration |
| Airflow Control | CAV (Constant Air Volume) function |
| Sensor Compatibility | CO₂, VOC, and RH (humidity) sensors |
| Cooling Function | Free cooling via outdoor air |
| Efficiency | Very high |
| Monitoring | Built-in energy recovery and power consumption counters |
