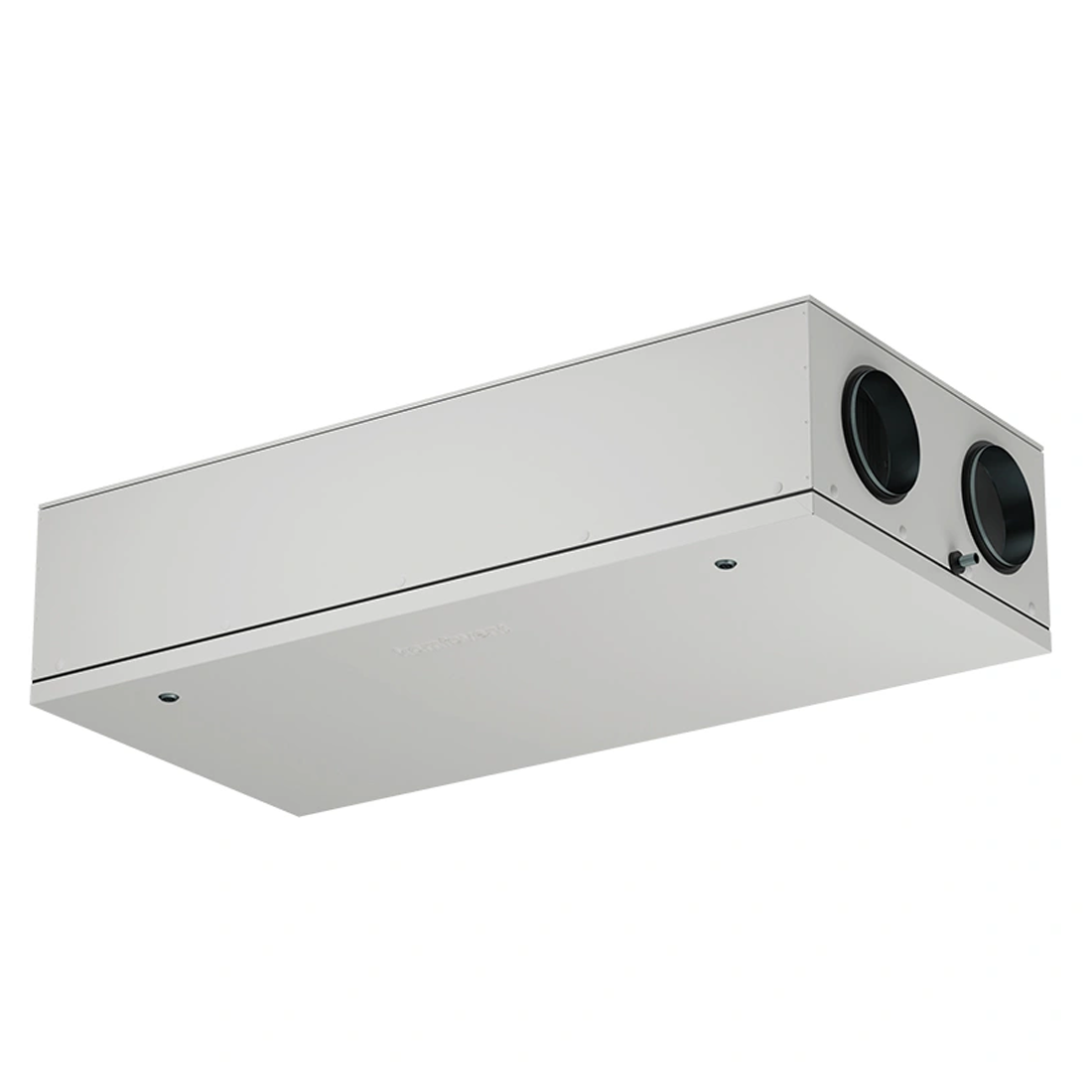

CF-250F Counterflow - Ceiling unit (use C6 controller)
CF-250F Counterflow - Ceiling unit (use C6 controller)
SKU : Domekt-CF-250F-L1-F7/M5-C6-C
Overview
This compact and energy-efficient ventilation unit delivers a maximum airflow of 292 m³/h, making it ideal for medium-sized residential spaces where performance and space-saving design are essential. With an A energy class rating and advanced thermal management, it ensures comfortable and healthy indoor air conditions throughout the year.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand CF-250F Counterflow - Ceiling unit - Domekt-CF-250F-L1-F7/M5-C6-C
Right Hand CF-250F Counterflow - Ceiling unit - Domekt-CF-250F-R1-F7/M5-C6-C
Product Overview
This compact and energy-efficient ventilation unit delivers a maximum airflow of 292 m³/h, making it ideal for medium-sized residential spaces where performance and space-saving design are essential. With an A energy class rating and advanced thermal management, it ensures comfortable and healthy indoor air conditions throughout the year.
Equipped with two integrated heaters, the system is built for reliable operation in cold climate zones. The Smart C6 control system, paired with an integrated web server, allows full remote access and real-time monitoring via the Internet.
The unit utilizes two highly efficient heat exchangers: a condensing counterflow plate heat exchanger effective down to -4°C, which removes excess humidity in cold seasons, and a diffusion-enthalpy counterflow plate heat exchanger that saves heat and cold, regenerates humidity, and is resistant to icing.
Advanced automation features include free cooling using outdoor air and automatic airflow regulation via CO₂, VOC, or RH sensors. The system also tracks energy recovery and power consumption, helping maintain sustainable and cost-effective operation.
Technical Specification
| Feature | Details |
|---|---|
| Maximum Air Flow | 292 m³/h |
| Energy Class | A |
| Control System | Smart C6 with integrated web server (Internet control) |
| Heaters | Two integrated heaters (designed for cold climate performance) |
| Form Factor | Compact design for space-saving installation |
| Heat Exchanger Type 1 | Condensing counterflow plate heat exchanger (effective to -4°C; ideal for high humidity) |
| Heat Exchanger Type 2 | Diffusion-enthalpy counterflow plate heat exchanger (retains heat/cold, regenerates humidity, anti-icing) |
| Humidity Management | Effective dehumidification and moisture balance |
| Sensor Compatibility | CO₂, VOC, and RH sensors for automatic ventilation control |
| Cooling Function | Free cooling using outdoor air |
| Monitoring | Integrated energy recovery and power consumption counters |
