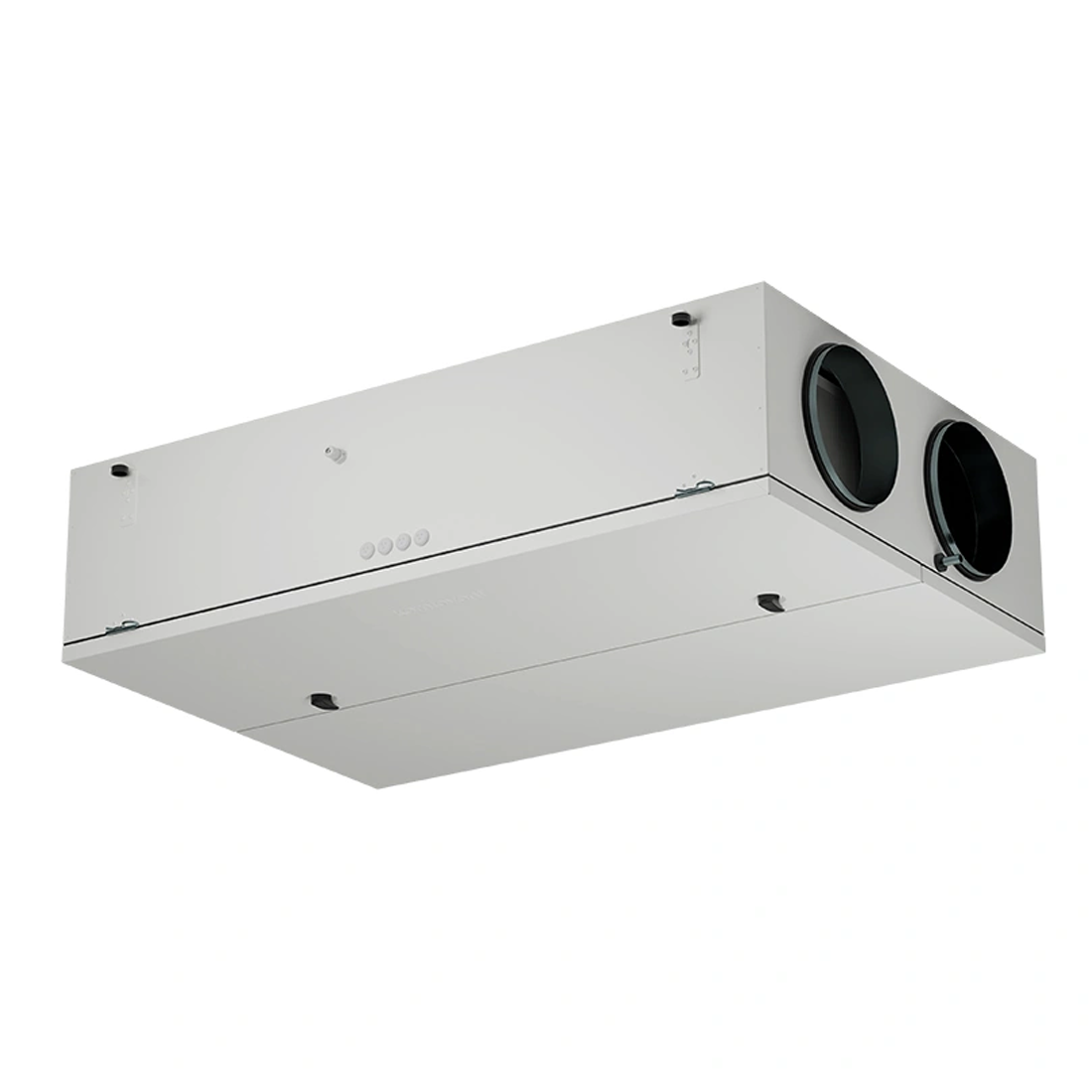

CF-700F Counterflow - Ceiling unit (use C6 controller)
CF-700F Counterflow - Ceiling unit (use C6 controller)
SKU : Domekt-CF-700F-L1-F7/M5-C6M-C
Overview
Engineered for high-performance ventilation in large residential or commercial spaces, this unit delivers a maximum airflow of 706 m³/h with A+ energy efficiency. Its advanced features and robust design ensure exceptional indoor air quality, humidity control, and energy savings — even in cold and humid climates.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand CF-700F Counterflow - Ceiling unit - Domekt-CF-700F-L1-F7/M5-C6M-C
Right Hand CF-700F Counterflow - Ceiling unit - Domekt-CF-700F-R1-F7/M5-C6M-C
Product Overview
Engineered for high-performance ventilation in large residential or commercial spaces, this unit delivers a maximum airflow of 706 m³/h with A+ energy efficiency. Its advanced features and robust design ensure exceptional indoor air quality, humidity control, and energy savings — even in cold and humid climates.
Built with two integrated heaters, a Smart C6M control system, and smart defrost technology, the system guarantees reliable operation year-round. A 100% by-pass function allows free cooling and efficient night-time ventilation during warmer months, reducing the need for active cooling systems.
The unit integrates two cutting-edge heat exchangers:
-
A condensing counterflow plate heat exchanger, effective down to -4°C, ideal for removing excess humidity in winter.
-
A diffusion-enthalpy counterflow plate heat exchanger, which recovers heat and cold, regenerates humidity, and is highly resistant to icing — ensuring a consistently comfortable indoor climate.
Additional smart features include CAV airflow control, automatic ventilation regulation via CO₂, VOC, or RH sensors, and integrated energy recovery and power consumption monitoring. The built-in web server enables remote control and real-time system diagnostics, making it an ideal solution for intelligent, energy-efficient ventilation.
Technical Specification
| Feature | Details |
|---|---|
| Maximum Air Flow | 706 m³/h |
| Energy Class | A+ |
| Control System | Smart C6M with integrated web server (remote Internet access) |
| Bypass Function | 100% bypass for free cooling and night ventilation |
| Heaters | Two integrated heaters (designed for cold climate zones) |
| Defrost System | Smart defrost technology for low-temperature reliability |
| Heat Exchanger Type 1 | Condensing counterflow plate heat exchanger (operates down to -4°C; dehumidifies in cold conditions) |
| Heat Exchanger Type 2 | Diffusion-enthalpy counterflow plate heat exchanger (saves heat/cold, regenerates humidity, icing-resistant) |
| Humidity Management | Excellent performance in high-humidity environments |
| Airflow Control | CAV (Constant Air Volume) function for precise airflow regulation |
| Sensor Compatibility | CO₂, VOC, and RH sensors for automatic ventilation adjustment |
| Cooling Function | Free cooling using outdoor air |
| Monitoring | Integrated energy recovery and power consumption counters |
