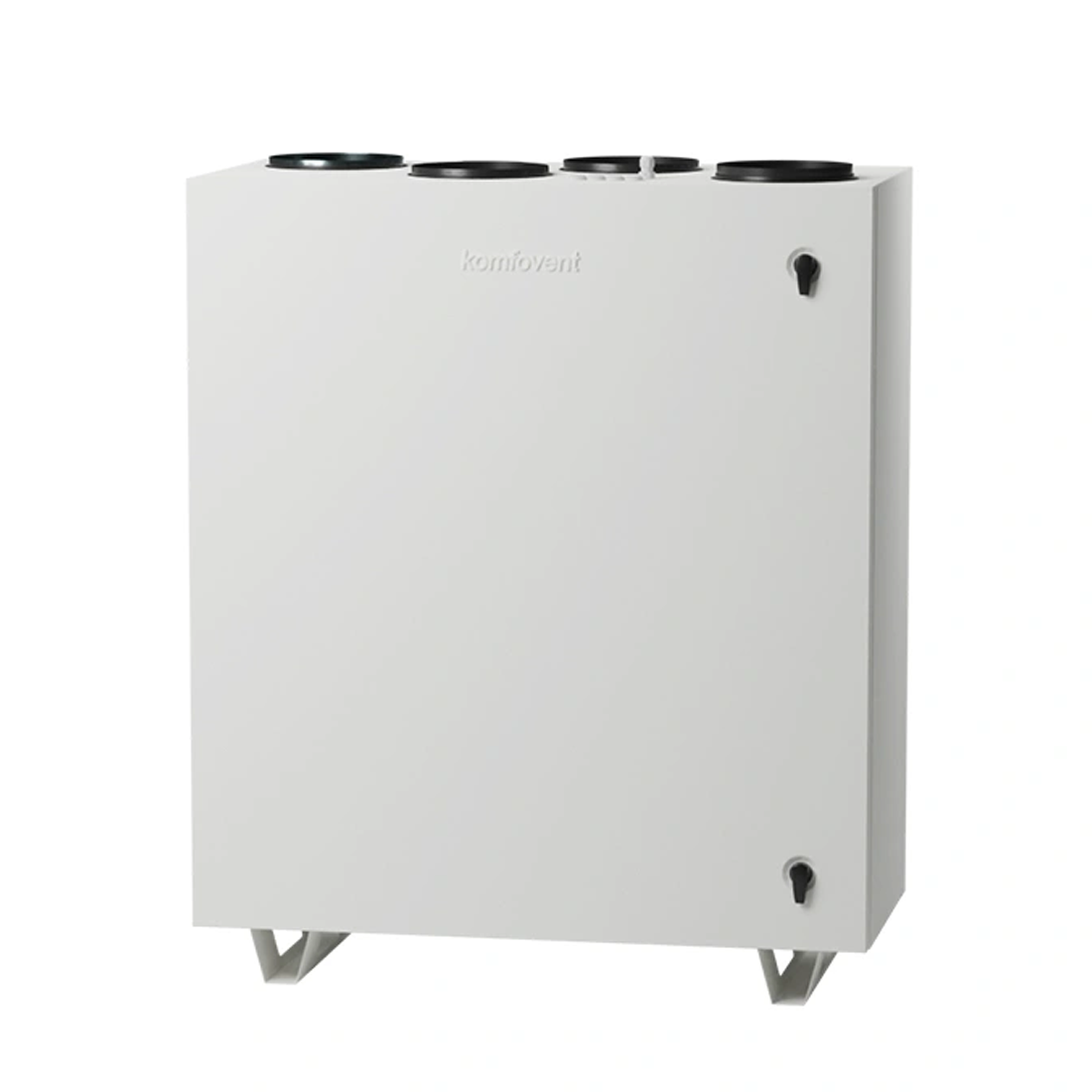

CF-700V Counterflow - Vertical unit (use C6 controller)
CF-700V Counterflow - Vertical unit (use C6 controller)
SKU : Domekt-CF-700V-L1-F7/M5-C6M-C
Overview
This high-capacity ventilation unit combines exceptional performance with intelligent energy-saving features, making it ideal for large residential or commercial spaces. With a maximum airflow of 650 m³/h and an A+ energy efficiency rating, it delivers powerful ventilation while ensuring low energy consumption.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand CF-700V Counterflow - Vertical unit - Domekt-CF-700V-L1-F7/M5-C6M-C
Right Hand CF-700V Counterflow - Vertical unit - Domekt-CF-700V-R1-F7/M5-C6M-C
Product Overview
This high-capacity ventilation unit combines exceptional performance with intelligent energy-saving features, making it ideal for large residential or commercial spaces. With a maximum airflow of 650 m³/h and an A+ energy efficiency rating, it delivers powerful ventilation while ensuring low energy consumption.
Built for cold climate zones, the unit includes two integrated heaters and a smart defrost system, ensuring reliable operation even in harsh winter conditions. The advanced smart C6M control system and integrated web server allow for full remote control and monitoring via the Internet.
The system features dual heat exchangers: a condensing counterflow plate heat exchanger for efficient moisture elimination in cold weather (effective down to -4°C), and a diffusion-enthalpy counterflow exchanger that maintains a balanced indoor microclimate by recovering heat, cold, and humidity.
Additional intelligent features include a 100% by-pass for free and night cooling, CAV airflow control, and automatic adjustment based on CO₂, VOC, or RH sensors. Energy recovery and power consumption counters support sustainable building management and energy transparency.
Technical Specification
| Feature | Details |
|---|---|
| Maximum Air Flow | 650 m³/h |
| Energy Class | A+ |
| Control System | Smart C6M with integrated web server (Internet control) |
| By-Pass Function | 100% by-pass for free cooling and summer night cooling |
| Heaters | Two integrated heaters (optimized for cold climate zones) |
| Defrost Technology | Smart defrost system for low-temperature performance |
| Heat Exchanger Type 1 | Condensing counterflow plate heat exchanger (effective to -4°C; ideal for high-humidity environments) |
| Heat Exchanger Type 2 | Diffusion-enthalpy counterflow plate heat exchanger (saves heat/cold, manages humidity, resists icing) |
| Humidity Management | Effective moisture elimination and humidity regeneration |
| Airflow Control | CAV (Constant Air Volume) function |
| Sensor Compatibility | CO₂, VOC, and RH (humidity) sensors for automated ventilation control |
| Cooling Function | Free cooling via outdoor air |
| Monitoring | Built-in energy recovery and power consumption counters |
