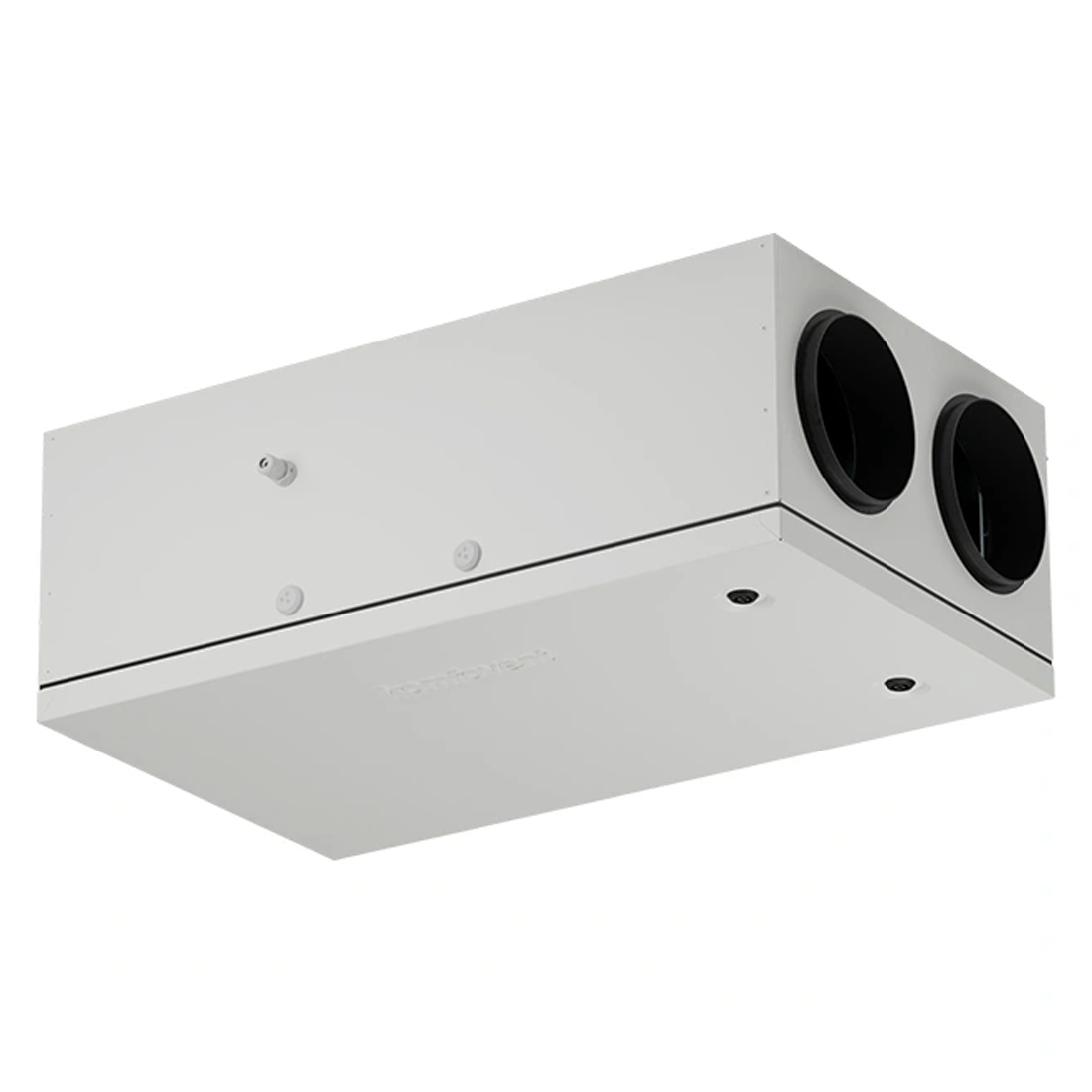

R150F Rotary wheel - Flat unit (use C6 controller)

Product Part Number

Left Hand R150F Rotary wheel - Flat unit - Domekt-R-150-F-L1-F7/M5-C8-LA
Right Hand R150F Rotary wheel - Flat unit - Domekt-R-150-F-R1-F7/M5-C8-LA

Product Overview

This compact residential ventilation unit is designed for cold-climate performance in small to medium-sized homes, with a maximum airflow of 150 m³/h and an A energy class rating. With a height of only 280 mm and support for three flexible mounting positions—ceiling, wall, or floor—it’s an ideal solution for spaces where installation depth is limited.

Despite its size, the unit is packed with advanced features. It combines a condensing rotary heat exchanger for efficient winter heat recovery with a sorption-enthalpy rotary exchanger featuring a zeolite coating, enabling year-round humidity and temperature control. A 5th duct connection allows for dedicated bathroom extraction, improving indoor air quality in wet rooms.

The Smart C8 control system allows for intuitive operation, including remote management via an integrated web server and automatic adjustment of airflow intensity based on CO₂, VOC, or RH sensors. Additional features include a Free Cooling function using outdoor air and quiet, efficient operation in a compact form factor.

Technical Specifications

- Maximum Airflow: 150 m³/h

- Energy Class: A

- Control System: Smart C8 with integrated web server (internet remote control)

- Dimensions: Height only 280 mm

- Mounting Options: Ceiling, wall, or floor installation

Heat Exchanger Type:

- Condensing rotary heat exchanger (optimized for heat recovery in low temperatures)

- Sorption-enthalpy rotary heat exchanger with zeolite coating (for year-round temperature and humidity control)

- Humidity Control: Active in both winter and summer

- Cooling Function: Free cooling using outdoor air

- Sensors Supported: CO₂, VOC, RH (humidity)

- Additional Ducting: 5th duct connection for bathroom extraction

- Application: Residential; compact spaces, cold climates
