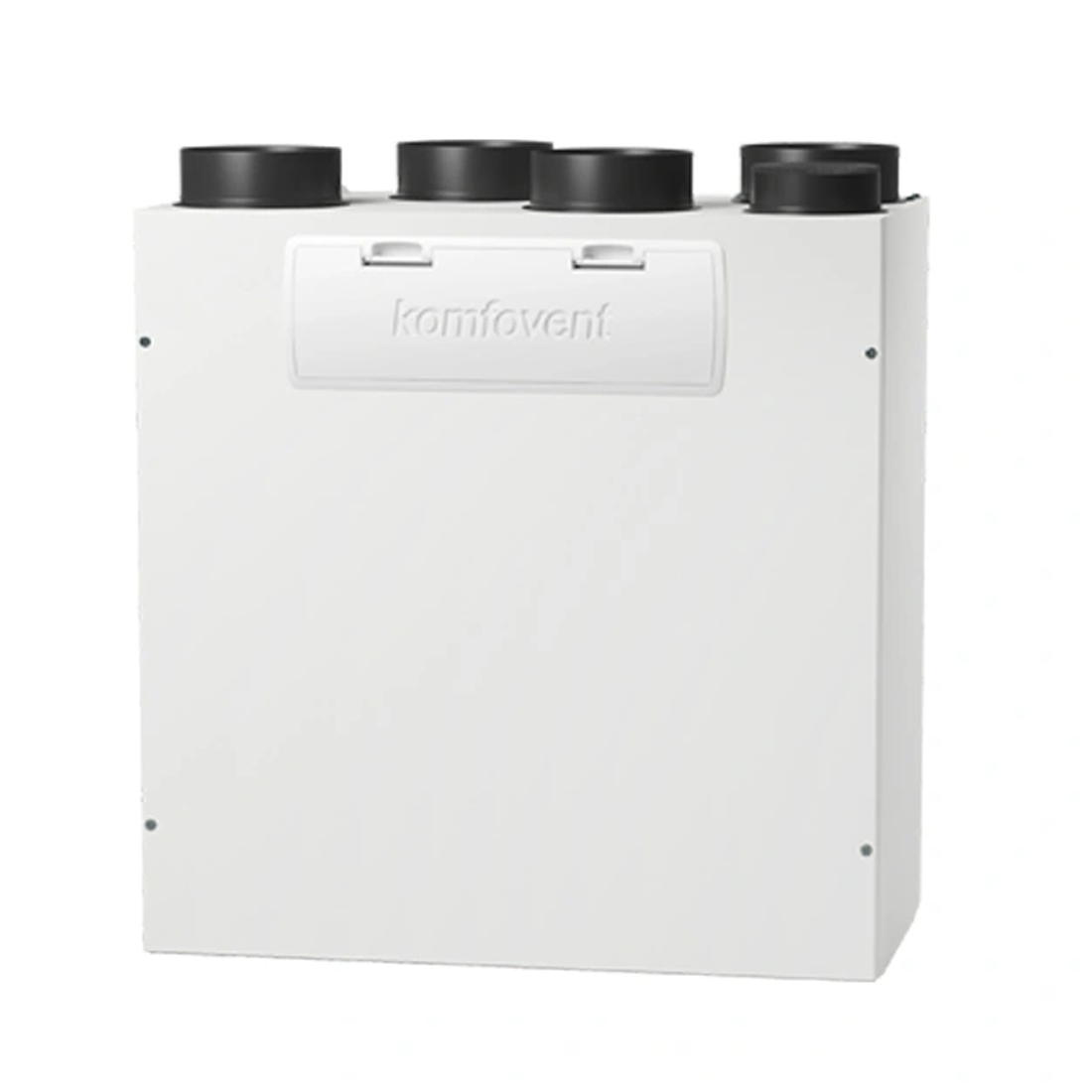

R200V Rotary wheel - Vertical unit (use C6 controller)

Product Part Number

Left Hand R200V Rotary wheel - Vertical unit - Domekt-R-200-V-L1-F7/M5-C8-LA
Right Hand R200V Rotary wheel - Vertical unit - Domekt-R-200-V-R1-F7/M5-C8-LA

Product Overview

This residential ventilation unit is specifically designed for northern climates, featuring a high-efficiency condensing rotary heat exchanger that ensures excellent heat recovery even in low outdoor temperatures. The unit is seamlessly integrated into kitchen furniture above the stove and includes a built-in kitchen hood for a streamlined, space-saving solution.

Equipped with the advanced Smart C8 control system, it allows remote management via an integrated web server and adapts ventilation intensity automatically using CO₂, VOC, or humidity (RH) sensors. The system also includes a Free Cooling function, enabling indoor cooling using fresh outdoor air. In winter, it helps maintain a healthy indoor climate by regenerating humidity. A compact, low-temperature PTC heater provides additional heating when needed. The unit features a patented design optimized for both performance and aesthetics.

Technical Specifications

- Maximum Airflow: 233 m³/h

- Energy Class: A

- Heat Exchanger Type: Condensing rotary heat exchanger

- Control System: Smart C8 with integrated web server (internet control)

- Installation: Above-stove integration with kitchen cabinetry and built-in kitchen hood

- Sensor Compatibility: CO₂, VOC, RH (for automatic ventilation control)

- Cooling Function: Free Cooling via outdoor air

- Heater: 0.5 kW low-temperature PTC heater

- Design: Patented
