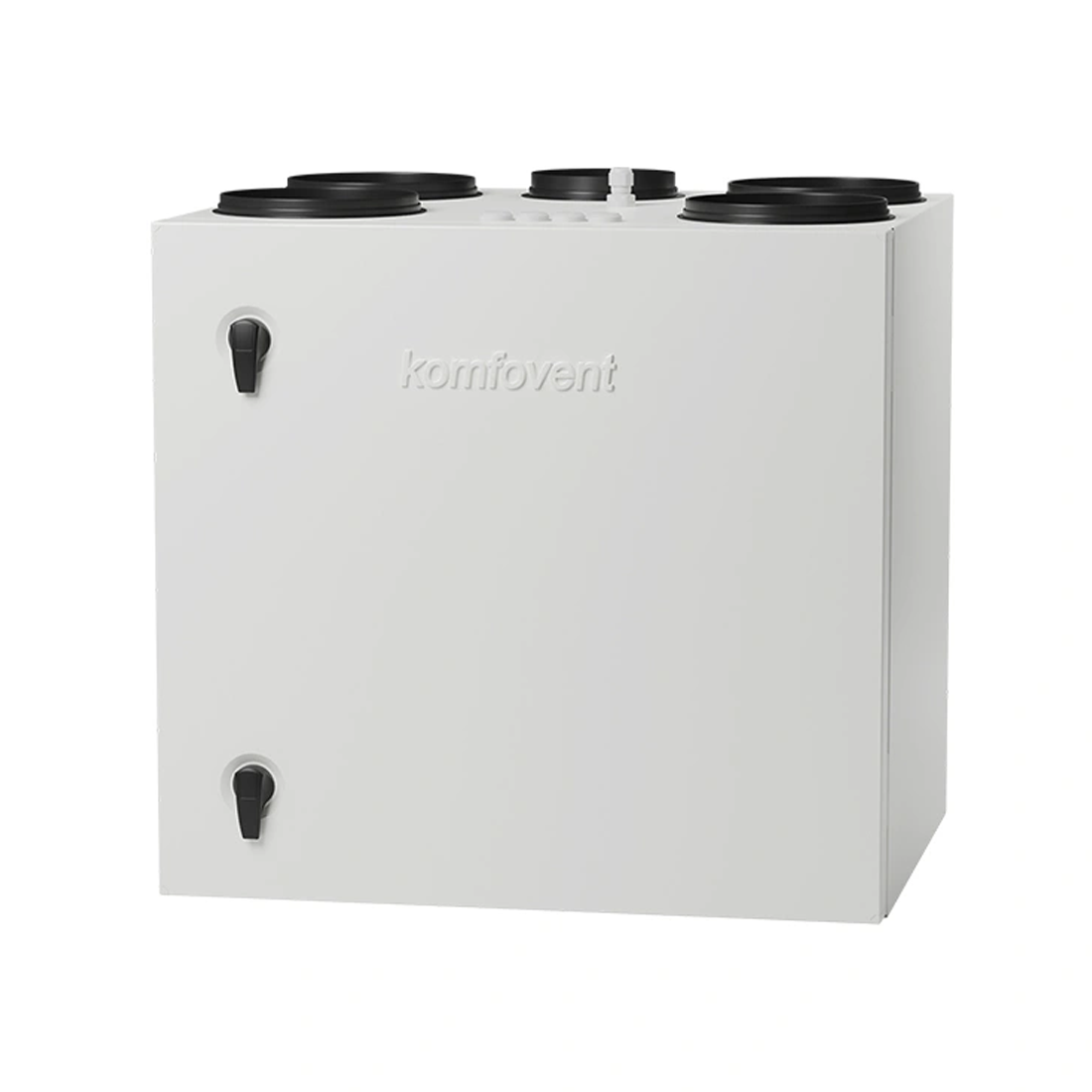

R400V Rotary wheel - Vertical unit (use C6 controller)

Product Part Number

Left Hand R400V Rotary wheel - Vertical unit - Domekt-R-400-V-L1-F7/M5-C6M-LA
Right Hand R400V Rotary wheel - Vertical unit - Domekt-R-400-V-R1-F7/M5-C6M-LA

Product Overview

This advanced residential ventilation unit is engineered for colder climates, offering efficient and quiet operation with a powerful air handling capacity. Designed to fit into a 600 mm wide space, it’s ideal for compact installations without sacrificing performance. The unit features a condensing rotary heat exchanger for efficient heat recovery in winter, as well as a sorption-enthalpy rotary exchanger with zeolite coating for year-round energy savings and humidity control.

The integrated Smart C6M control system enables precise airflow management, with remote operation via an integrated web server. The system supports automatic ventilation control based on CO₂, VOC, or humidity sensors and includes both CAV (Constant Air Volume) functionality and energy monitoring tools. Its exceptionally low noise level of just 27 dBA at 3 meters makes it one of the quietest solutions in its class.

Technical Specifications

- Maximum Airflow: 373 m³/h

- Energy Class: A+

- Control System: Smart C6M with integrated web server (internet control)

Heat Exchanger Type:

- Condensing rotary heat exchanger (for cold climates)

- Sorption-enthalpy rotary heat exchanger with zeolite coating (heat, cold, and humidity control)

- Humidity Control: Active regulation in winter and summer

- Cooling Function: Free cooling with outdoor air

- Noise Level: 27 dBA at 3 m distance

- Airflow Control: CAV function (Constant Air Volume)

- Sensors Supported: CO₂, VOC, RH (humidity)

- Energy Monitoring: Integrated energy recovery and power consumption counters

- Installation Dimensions: Fits into 600 mm wide spaces

- Application: Residential use in northern/cold climate zones
