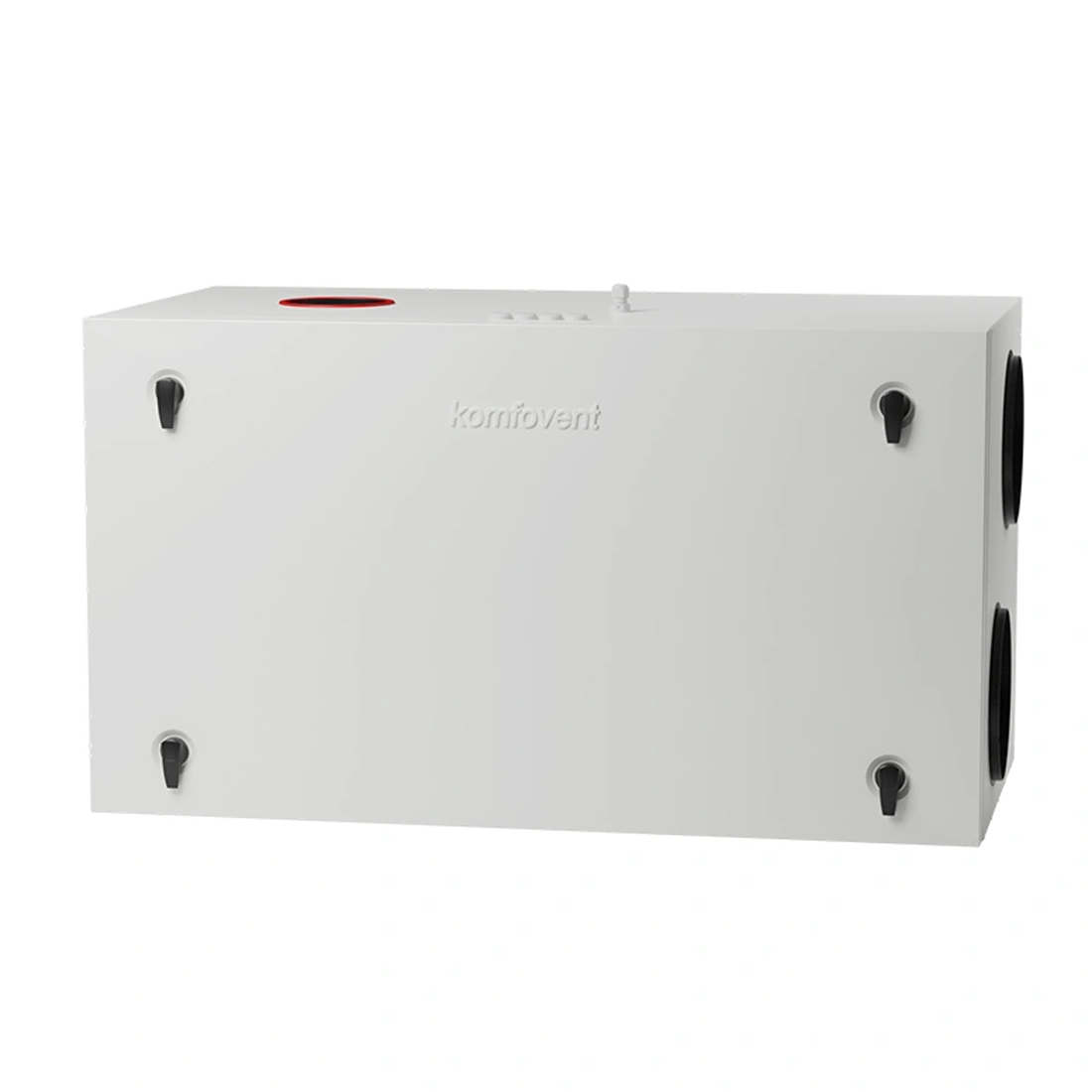

R600H Rotary wheel - Horizontal unit (use C6 controller)
R600H Rotary wheel - Horizontal unit (use C6 controller)
SKU : Domekt-R-600-H-L1-F7/M5-C6M-LA
Overview
This high-efficiency residential ventilation unit is designed for northern climate conditions and optimized for attic installation, offering powerful performance with a maximum airflow of 650 m³/h and an A+ energy class rating. Its compact and functional design makes it an ideal solution for homes where space and energy efficiency are top priorities.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand R600H Rotary wheel - Horizontal unit - Domekt-R-600-H-L1-F7/M5-C6M-LA
Right Hand R600H Rotary wheel - Horizontal unit - Domekt-R-600-H-R1-F7/M5-C6M-LA
Product Overview
This high-efficiency residential ventilation unit is designed for northern climate conditions and optimized for attic installation, offering powerful performance with a maximum airflow of 650 m³/h and an A+ energy class rating. Its compact and functional design makes it an ideal solution for homes where space and energy efficiency are top priorities.
The unit combines a condensing rotary heat exchanger for effective winter heat recovery with a sorption-enthalpy rotary heat exchanger coated with zeolite, which helps manage both heat and humidity in all seasons. A 5th duct connection allows for dedicated bathroom air extraction, improving moisture control in wet areas.
Managed by the advanced Smart C6M control system, the unit features remote access via an integrated web server, automatic airflow regulation based on CO₂, VOC, or RH sensors, CAV (Constant Air Volume) operation, and Free Cooling using outdoor air when conditions are favorable. Integrated monitoring tools provide real-time energy recovery and power consumption data.
Technical Specifications
- Maximum Airflow: 650 m³/h
- Energy Class: A+
- Control System: Smart C6M with integrated web server (internet-enabled remote control)
- Installation Location: Ideal for attic installation
Heat Exchanger Type:
- Condensing rotary heat exchanger (for effective heat recovery at low temperatures)
- Sorption-enthalpy rotary heat exchanger with zeolite coating (for heat/cold recovery and humidity regulation)
- Humidity Control: Active in both winter and summer
- Cooling Function: Free cooling using outdoor air
- Airflow Control: CAV (Constant Air Volume)
- Sensors Supported: CO₂, VOC, RH (humidity)
- Additional Ducting: 5th duct connection for bathroom extraction
- Energy Monitoring: Integrated energy recovery and power consumption counters
- Application: Residential; suitable for cold climates and attic-mounted configurations
