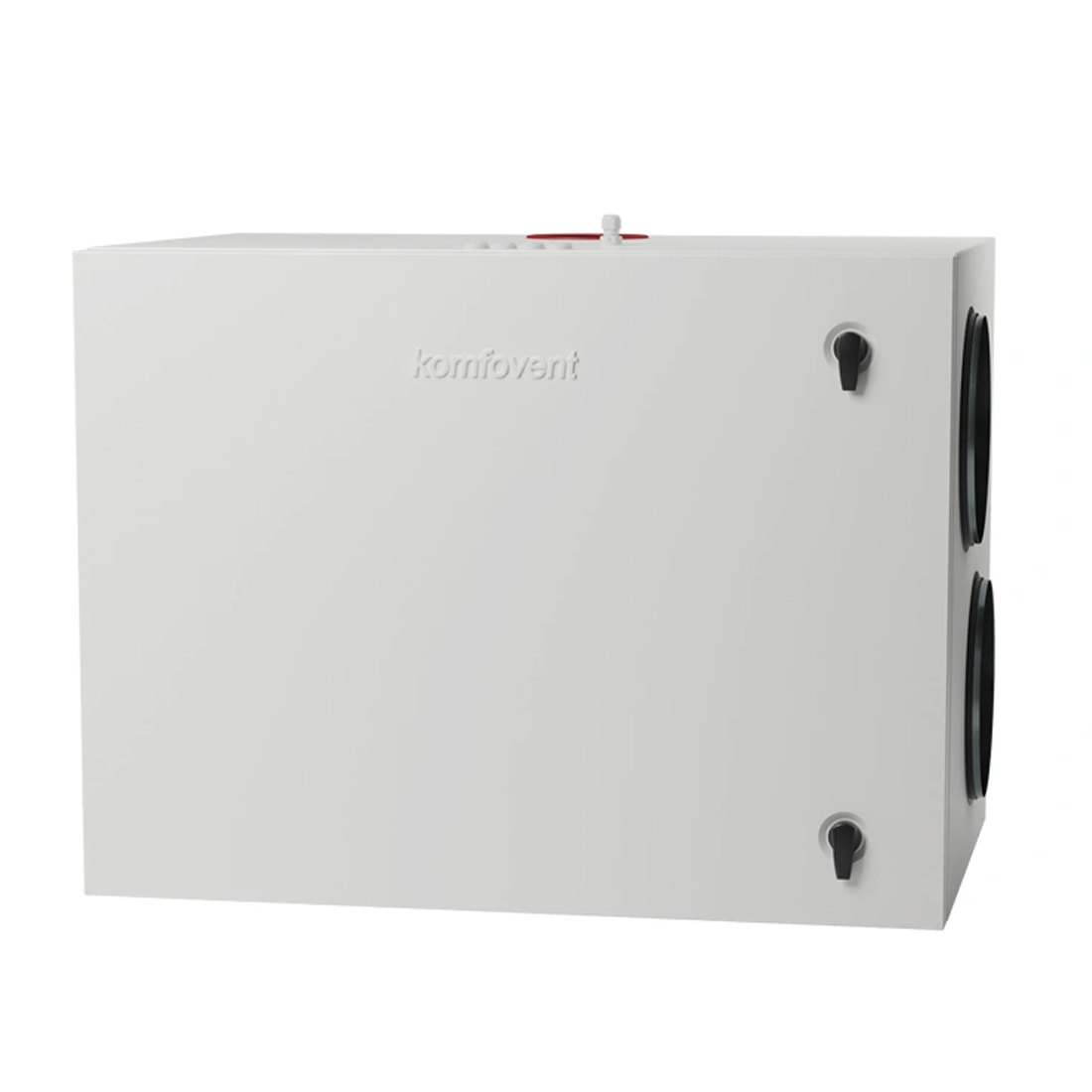

R700H Rotary wheel - Horizontal unit (use C6 controller)
R700H Rotary wheel - Horizontal unit (use C6 controller)
SKU : Domekt-R-700-H-L1-F7/M5-C6M-LA
Overview
This high-performance residential ventilation unit is purpose-built for northern climate conditions and is perfectly suited for attic installations. With a maximum airflow of 742 m³/h and an A+ energy efficiency rating, it offers a powerful yet energy-conscious solution for maintaining superior indoor air quality and comfort.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
Left Hand R700H Rotary wheel - Horizontal unit - Domekt-R-700-H-L1-F7/M5-C6M-LA
Right Hand R700H Rotary wheel - Horizontal unit - Domekt-R-700-H-R1-F7/M5-C6M-LA
Product Overview
This high-performance residential ventilation unit is purpose-built for northern climate conditions and is perfectly suited for attic installations. With a maximum airflow of 742 m³/h and an A+ energy efficiency rating, it offers a powerful yet energy-conscious solution for maintaining superior indoor air quality and comfort.
Equipped with both a condensing rotary heat exchanger for efficient heat recovery in winter and a sorption-enthalpy rotary heat exchanger with a zeolite coating, the unit delivers effective temperature and humidity control year-round. A 5th duct connection enables dedicated bathroom air extraction, ensuring proper ventilation in high-moisture areas.
The Smart C6M control system offers remote access via an integrated web server and supports automatic airflow regulation based on CO₂, VOC, or RH sensor data. Other advanced features include CAV (Constant Air Volume) operation, Free Cooling using outdoor air, and real-time monitoring of energy recovery and power consumption.
Technical Specifications
- Maximum Airflow: 742 m³/h
- Energy Class: A+
- Control System: Smart C6M with integrated web server (remote control via internet)
- Installation Location: Optimized for attic installation
Heat Exchanger Type:
- Condensing rotary heat exchanger (effective in low outdoor temperatures)
- Sorption-enthalpy rotary heat exchanger with zeolite coating (heat/cold recovery and humidity control)
- Humidity Control: Active year-round (winter and summer)
- Cooling Function: Free cooling using outdoor air
- Airflow Control: CAV function (Constant Air Volume)
- Sensors Supported: CO₂, VOC, RH (humidity)
- Additional Ducting: 5th duct connection for bathroom extraction
- Energy Monitoring: Integrated energy recovery and power consumption counters
- Application: Residential; ideal for cold climates and attic-mounted installations
