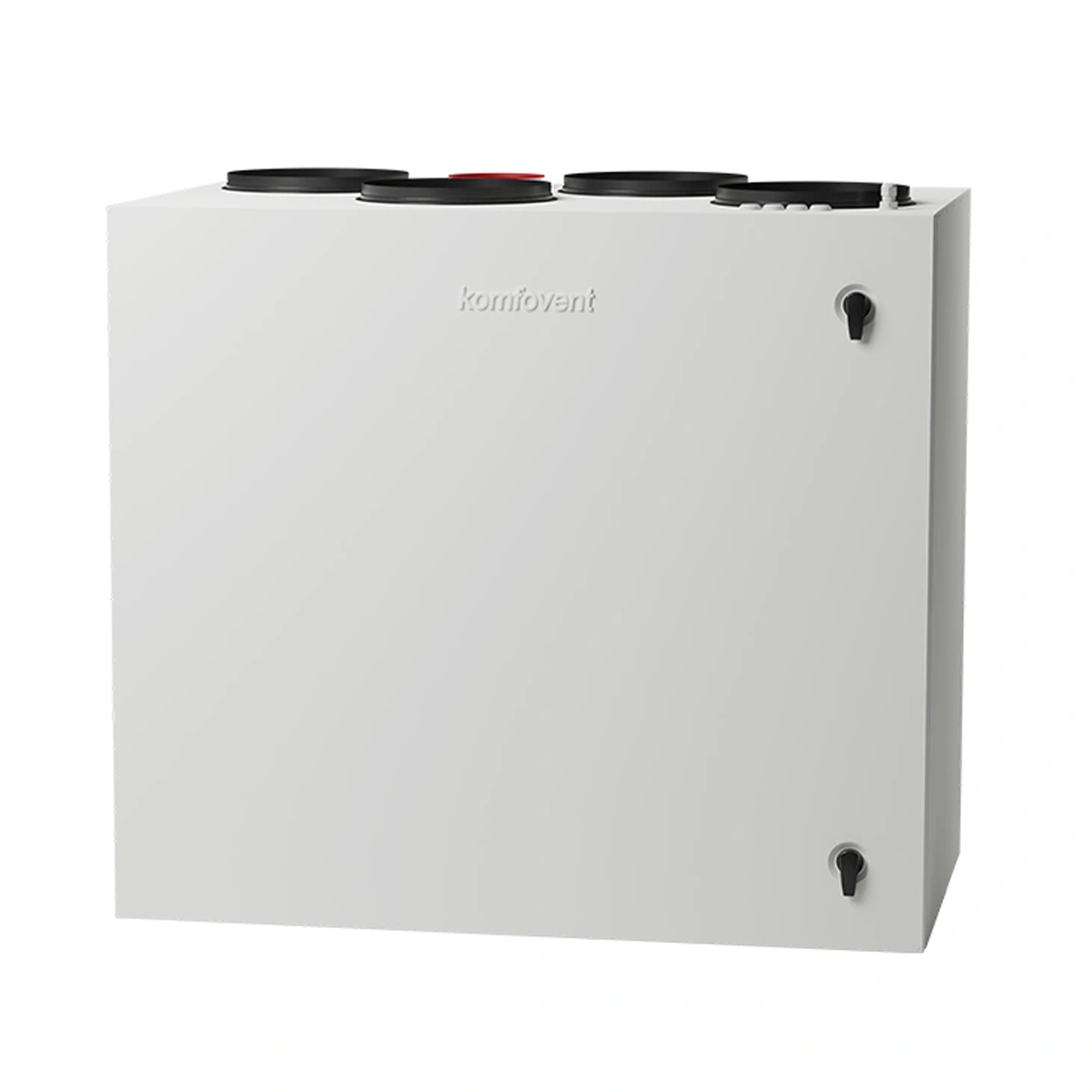

R700V Rotary wheel - Vertical unit (use C6 controller)

Product Part Number

Left Hand R700V Rotary wheel - Vertical unit - Domekt-R-700-V-L1-F7/M5-C6M-LA
Right Hand R700V Rotary wheel - Vertical unit - Domekt-R-700-V-R1-F7/M5-C6M-LA

Product Overview

This high-capacity residential ventilation unit is built for homes in northern climate regions, delivering efficient airflow management and year-round indoor climate control. With a maximum airflow of 738 m³/h and A+ energy class rating, it offers excellent energy performance while ensuring a healthy and comfortable living environment.

The unit integrates a condensing rotary heat exchanger for effective heat recovery during cold seasons and a sorption-enthalpy rotary exchanger with zeolite coating to maintain optimal humidity and temperature levels in both winter and summer. Controlled by the intelligent Smart C6M system, it supports remote access via an integrated web server and allows for automatic airflow regulation using CO₂, VOC, or humidity sensors.

Additional features include CAV (Constant Air Volume) control, energy consumption tracking, and a Free Cooling function that uses outdoor air to cool indoor spaces when conditions allow.

Technical Specifications

- Maximum Airflow: 738 m³/h

- Energy Class: A+

- Control System: Smart C6M with integrated web server (internet remote control)

Heat Exchanger Type:

- Condensing rotary heat exchanger (optimized for low outdoor temperatures)

- Sorption-enthalpy rotary heat exchanger with zeolite coating (for enhanced heat/cold recovery and humidity control)

- Humidity Control: Year-round, supports both winter regeneration and summer dehumidification

- Cooling Function: Free cooling via outdoor air

- Airflow Control: CAV function (Constant Air Volume)

- Sensors Supported: CO₂, VOC, RH (humidity)

- Energy Monitoring: Integrated energy recovery and power consumption counters

- Application: Residential, ideal for large homes in cold or variable climates
