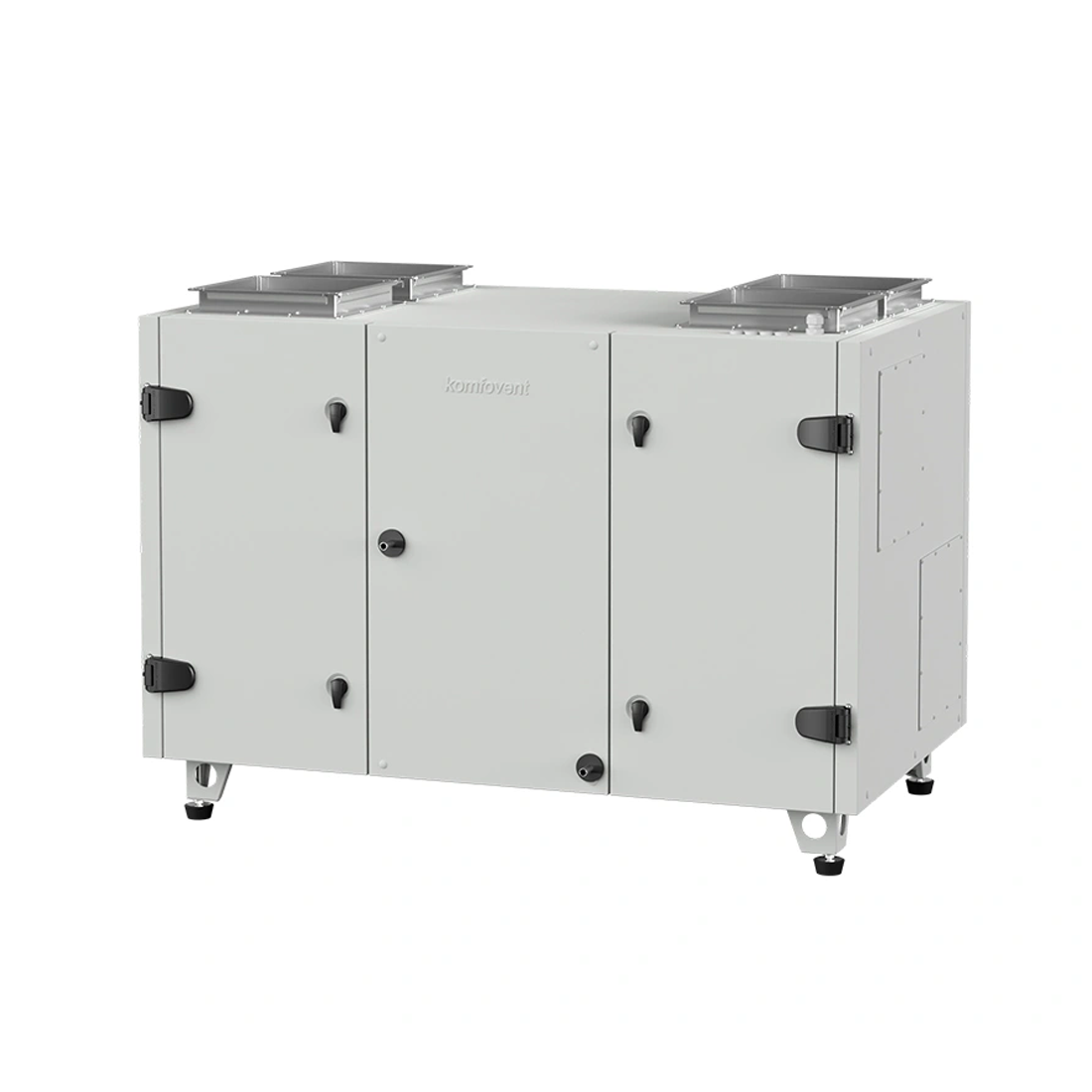

Komfovent RHP-1600H

Product Part Number

RHP 1600 11.2/9.4 UH C5

Product Overview

RHP 1600 U C5 is a high-capacity indoor climate control unit designed to deliver maximum ventilation performance combined with efficient heating, cooling, and humidity management. With a nominal air flow of 1700 m³/h, the unit is ideal for larger residential, commercial, and mixed-use applications requiring high air volumes and precise indoor climate control.

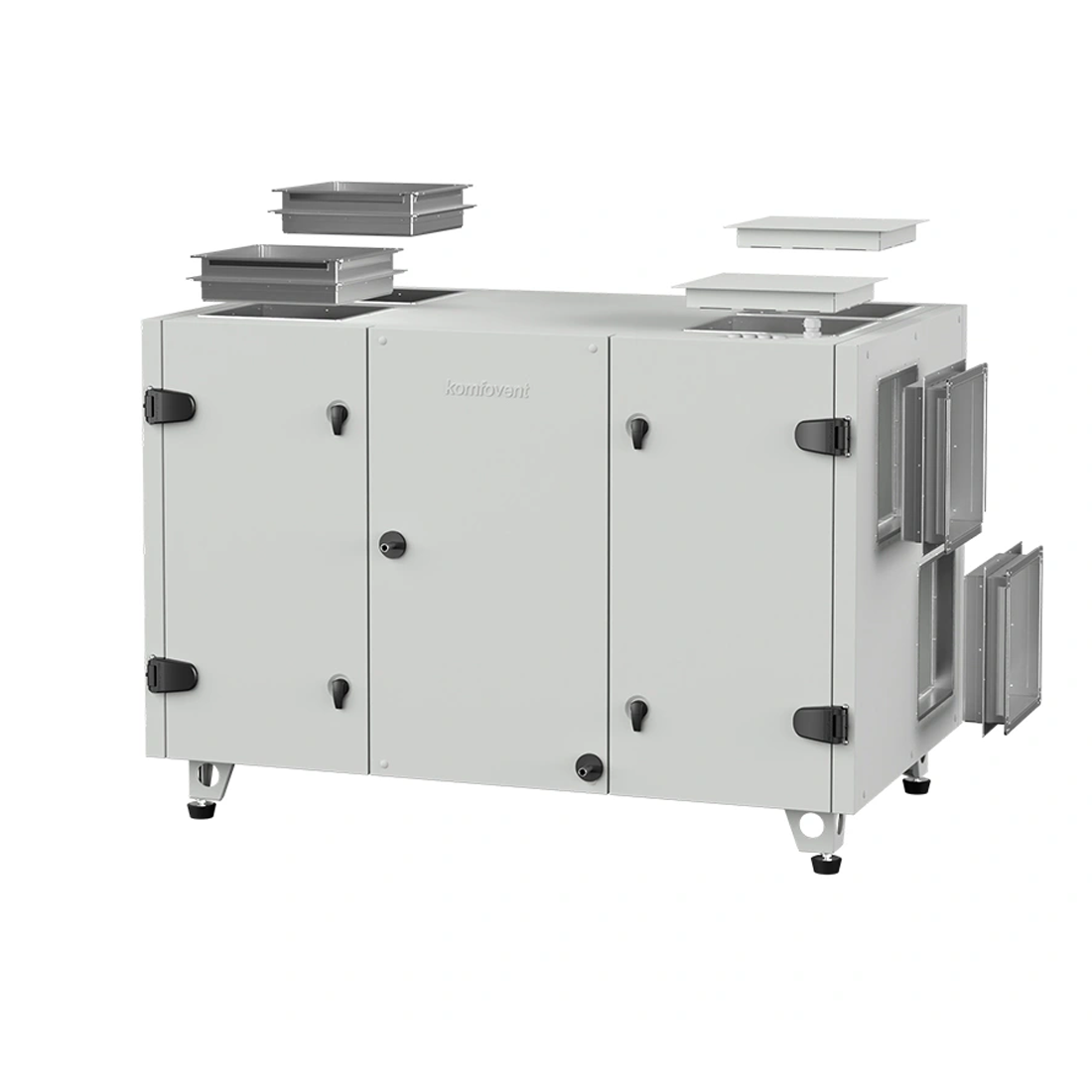

The unit features a “Plug & Play” concept, supplied factory-charged with refrigerant, ensuring fast and straightforward installation. Its 16 duct connection options provide exceptional flexibility during system design and installation, allowing easy adaptation to a wide range of building layouts.

An integrated dual-rotor inverter compressor ensures high efficiency, low energy consumption, and quiet operation, while delivering highly effective heating and cooling performance. In summer, the unit performs active air dehumidification, and in winter it supports humidity regeneration, maintaining optimal indoor comfort throughout the year.

The advanced C5 smart control system enables precise control of the set temperature and continuously optimizes unit operation. Designed to provide maximum heating and cooling efficiency, the RHP 1600 U C5 offers a robust, flexible, and reliable solution for demanding ventilation and climate control applications.

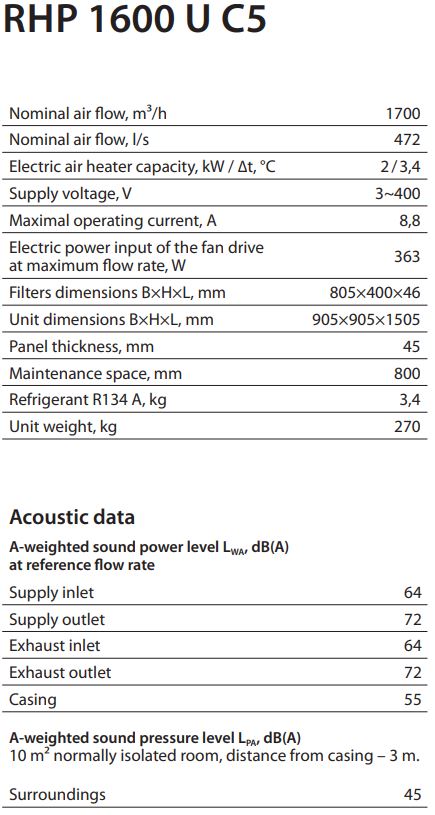

Technical Specification

Air Performance

- Nominal air flow: 1700 m³/h

- Nominal air flow: 472 l/s

- Fan type: BLDC

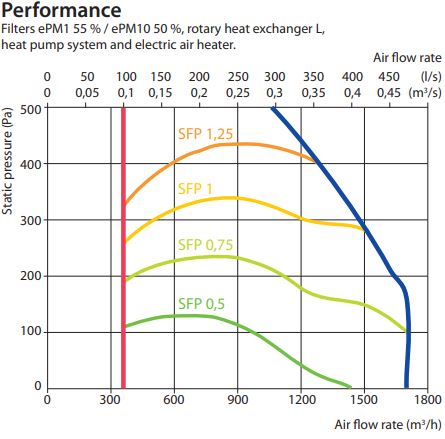

- Specific Fan Power (SFP): 0.5 – 1.25

Electrical Data

- Supply voltage: 3~400 V

- Maximal operating current: 12.2 A

- Power supply cable: 5 × 2.5 mm²

- Electric air heater capacity: 3.0 / 5.2 kW (∆t dependent)

- Fan power input (at max flow): 393 W

Acoustic Data

- Noise power level (LWA): 50 dB(A)

- Noise pressure level (LPA): 41 dB(A) at 3 m

Filters

- Supply air filter: ePM1 60% (F7)

- Exhaust air filter: ePM10 50% (M5)

- Filter dimensions (B × H × L): 805 × 400 × 46 mm

Dimensions & Installation

- Unit dimensions (B × H × L): 905 × 905 × 1505 mm

- Panel thickness: 45 mm

- Required maintenance space: 850 mm

- Unit weight: 270 kg

Refrigerant

- Type: R134a

- Refrigerant charge: 3.4 kg

Heat Recovery & Efficiency

- Heat exchanger type: Rotary heat exchanger (wave size “ML”)

- Temperature efficiency:

Winter: up to 86%

Summer: up to 84%

Heat Pump Performance (RHP 1600 U-11.2/9.4)

Heating mode

- Heating capacity: up to 11.2 kW

- Power consumption: from 0.71 to 1.41 kW

- COP: up to 6.0

Cooling mode

- Cooling capacity: up to 9.4 kW

- Power consumption: from 0.82 to 1.15 kW

- EER: up to 5.73

- System SCOP (average climate): according to EN 14825

- System SEER: according to EN 14825

Operating Functions

- High-capacity supply and extract ventilation with heat recovery

- Integrated heat pump for efficient heating and cooling

- Summer air dehumidification

- Winter humidity regeneration

- Precise supply air temperature control

- Flexible installation with 16 duct connection configurations
