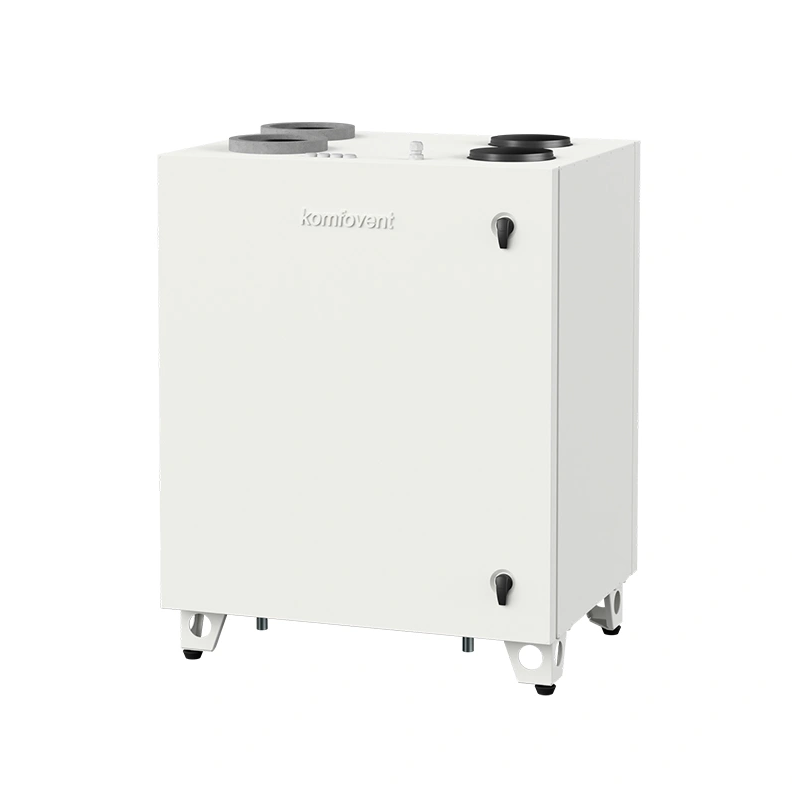

Komfovent RHP-450V Rotary wheel - Vertical unit with Heat Pump (Use C5.1 Controller)

Product Part Number

RHP-450-3.6/3.0-V C5

Product Overview

RHP 450 V C5 is a compact, high-efficiency indoor climate control unit designed to provide complete ventilation, air heating, cooling, and humidity management for residential and commercial spaces. With a nominal airflow of 450 m³/h, the unit ensures a constant supply of fresh, filtered air while maintaining precise indoor temperature control.

The system is equipped with a dual-rotor inverter compressor, delivering high energy efficiency, quiet operation, and reliable year-round performance. In summer, the unit actively dehumidifies, while in winter it supports humidity regeneration, ensuring a comfortable and healthy indoor environment in all seasons.

The RHP 450 V C5 uses the R1234yf refrigerant, featuring an ultra-low Global Warming Potential (GWP) of just 4, making it an environmentally responsible solution. Thanks to its “Plug & Play” design, the unit is factory-charged with refrigerant and ready for fast installation.

Controlled by the intelligent C5 smart control system, the unit offers accurate temperature regulation and optimized system performance. As it requires no outdoor unit, it produces no external noise or visual impact, making it especially suitable for renovated, residential, and historical buildings.

Technical Specification

Air Performance

- Nominal air flow: 450 m³/h

- Nominal air flow: 125 l/s

- Specific Fan Power (SFP): from 0.5 to 1.25

- Fan type: BLDC

Electrical Data

- Supply voltage: 1~230 V

- Maximal operating current: 10.8 A

- Power supply cable: 3 × 1.5 mm²

- Electric air heater capacity: 1 / 6.5 kW (∆t dependent)

- Fan power input (at max flow): 116 W

Acoustic Data

- Noise power level (LWA): 52 dB(A)

- Noise pressure level (LPA): 42 dB(A) at 3 m

Filters

- Supply air filter: ePM1 60% (F7)

- Exhaust air filter: ePM10 50% (M5)

- Filter dimensions (B × H × L): 540 × 185 × 46 mm

Dimensions & Installation

- Unit dimensions (B × H × L): 645 × 1050 × 830 mm

- Panel thickness: 45 mm

- Required maintenance space: 700 mm

- Unit weight: 121 kg

Refrigerant

- Type: R1234yf

- Refrigerant charge: 0.6 kg

- GWP: 4

Heat Recovery & Efficiency

- Rotary heat exchanger: Wave size “ML”

- Temperature efficiency:

Winter: up to 86%

Summer: up to 84%

Heat Pump Performance (RHP 450 V-3.6/3.0)

- Heating / cooling capacity: up to 3.6 / 3.0 kW

- COP / EER: up to 3.9

- System SCOP (average climate): compliant with EN 14825

- System SEER: compliant with EN 14825

Operating Functions

- Ventilation with heat recovery

- Heating and cooling via integrated heat pump

- Summer dehumidification

- Winter humidity regeneration

- Precise supply air temperature control
