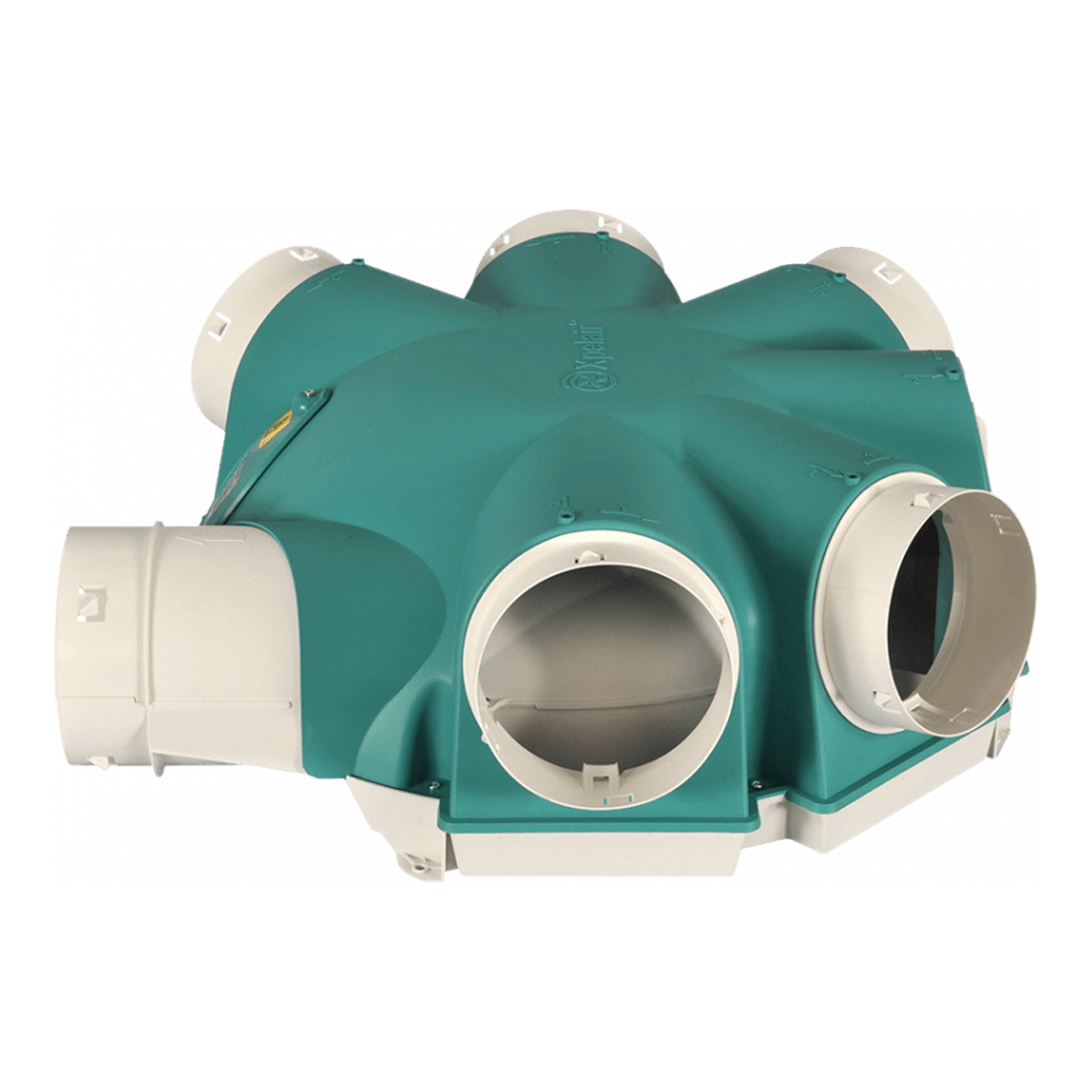

Xpelair Xplus 2EC MEV

Product Part Number

92498AG

Product Overview

The Xplus 2 Central Extract Ventilation System is a high-performance, continuous ventilation solution designed to effectively remove stale, moist air from domestic kitchens, bathrooms, and wet rooms. While primarily intended for residential applications, the unit is also suitable for light commercial environments where reliable continuous extract ventilation is required.

Featuring a low-profile 190 mm multi-spigot design, the Xplus 2 offers exceptional installation flexibility. Its innovative spigot configuration allows ducting to be connected from multiple directions, reducing airflow restriction and minimising noise levels. This flexibility makes it ideal for a wide range of installation scenarios, whether mounted horizontally or vertically.

Xplus 2 EC models incorporate energy-efficient EC motors with backward-curved impellers, delivering powerful yet economical extraction performance with long operational life. The unit includes four speed options, three of which are installer-selectable, enabling precise configuration to meet Part F building regulation extraction rates based on the size and layout of the dwelling.

By combining high extraction performance with quiet operation, flexible siting, and multiple duct connections, the Xplus 2 helps maintain healthy indoor air quality, reduces condensation, and supports comfortable living environments throughout the property.

Technical Specification

- Product Name: Xplus 2

- Product Type: Central Continuous Extract Ventilation System

- Applications:

Domestic kitchens, bathrooms, and wet rooms

Light commercial wet rooms requiring continuous extract

- Ventilation Type: Centralised continuous extract

Motor & Performance

- Motor Type: EC motor

- Impeller Type: Backward curved

- Speed Options: 4 total

3 selectable at installation

- Operation: Continuous extract

- Performance Configuration: Adjustable to meet Part F extraction requirements

Design & Construction

- Profile: Low-profile design

- Overall Depth: 190 mm

- Spigot Configuration: Multi-spigot

- Duct Connection:

Multiple connection options

Ducting can be connected from any direction

- Airflow Characteristics:

Reduced airflow restriction

Low noise operation

Installation

- Installation Orientation:

Horizontal

Vertical

- Siting Flexibility: High – suitable for various mounting locations

- Application Flexibility: Domestic and light commercial use

System Benefits

- Continuous removal of moisture and stale air

- Improved indoor air quality

- Reduced condensation and humidity

- Energy-efficient operation

- Quiet performance

- Long motor lifespan

- Flexible installation and ducting layouts
