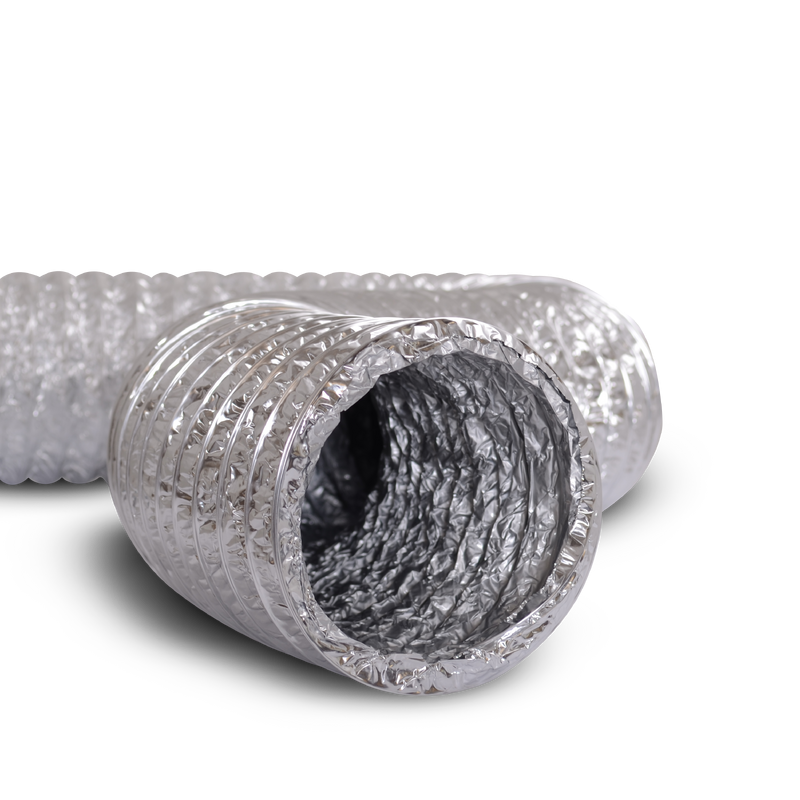

Quiet-Vent 127 aluminium flexi x 10m
Quiet-Vent 127 aluminium flexi x 10m
SKU : ALU2.0-127
Overview
The Quiet-Vent 127mm Aluminium Flexible Duct is designed for flexible air connections within ventilation, air-conditioning and extraction systems. Its lightweight construction allows it to be routed around obstacles and through restricted installation areas where rigid ductwork may be difficult to use.
£6.53
incl. VAT
Couldn't load pickup availability
Description
Product Part Number
ALU2.0-127
Product Overview
The Quiet-Vent 127mm Aluminium Flexible Duct is designed for flexible air connections within ventilation, air-conditioning and extraction systems. Its lightweight construction allows it to be routed around obstacles and through restricted installation areas where rigid ductwork may be difficult to use.
Manufactured from an aluminium and polyester laminated material with an embedded flexible wire spring, the duct can be extended, shaped and cut to the required length on site. Supplied in a 10m length, it provides a practical connection between ventilation units, fans, terminals and compatible 127mm circular ductwork.
Technical Specification
| Specification | Details |
|---|---|
| Product code | QV-AFD-127-10 |
| Product type | Non-insulated aluminium flexible duct |
| Application | Ventilation, air-conditioning and extraction systems |
| Nominal diameter | 127mm |
| Approximate imperial size | 5 inches |
| Supplied length | 10m |
| Shape | Circular |
| Construction | Aluminium and polyester laminate |
| Reinforcement | Embedded flexible wire spring |
| Layer construction | One polyester layer and one aluminium layer |
| Insulation | None |
| Operating temperature | −30°C to +150°C |
| Maximum air velocity | 30m/s |
| Maximum operating pressure | 2,500Pa |
| Packaging | Individual carton |
