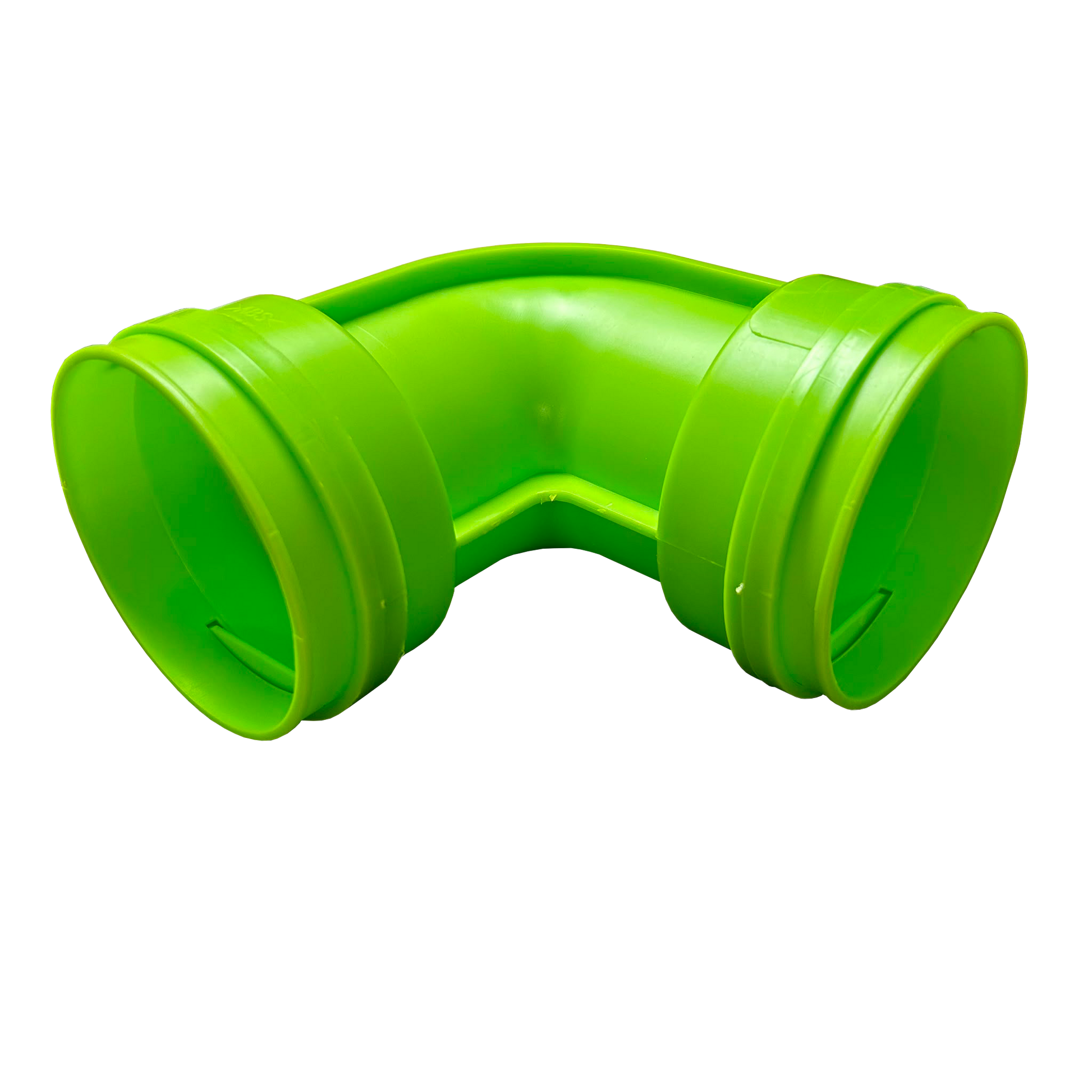

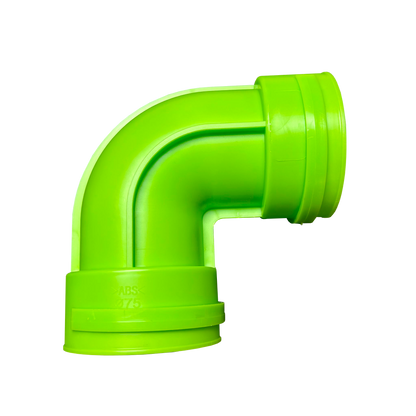

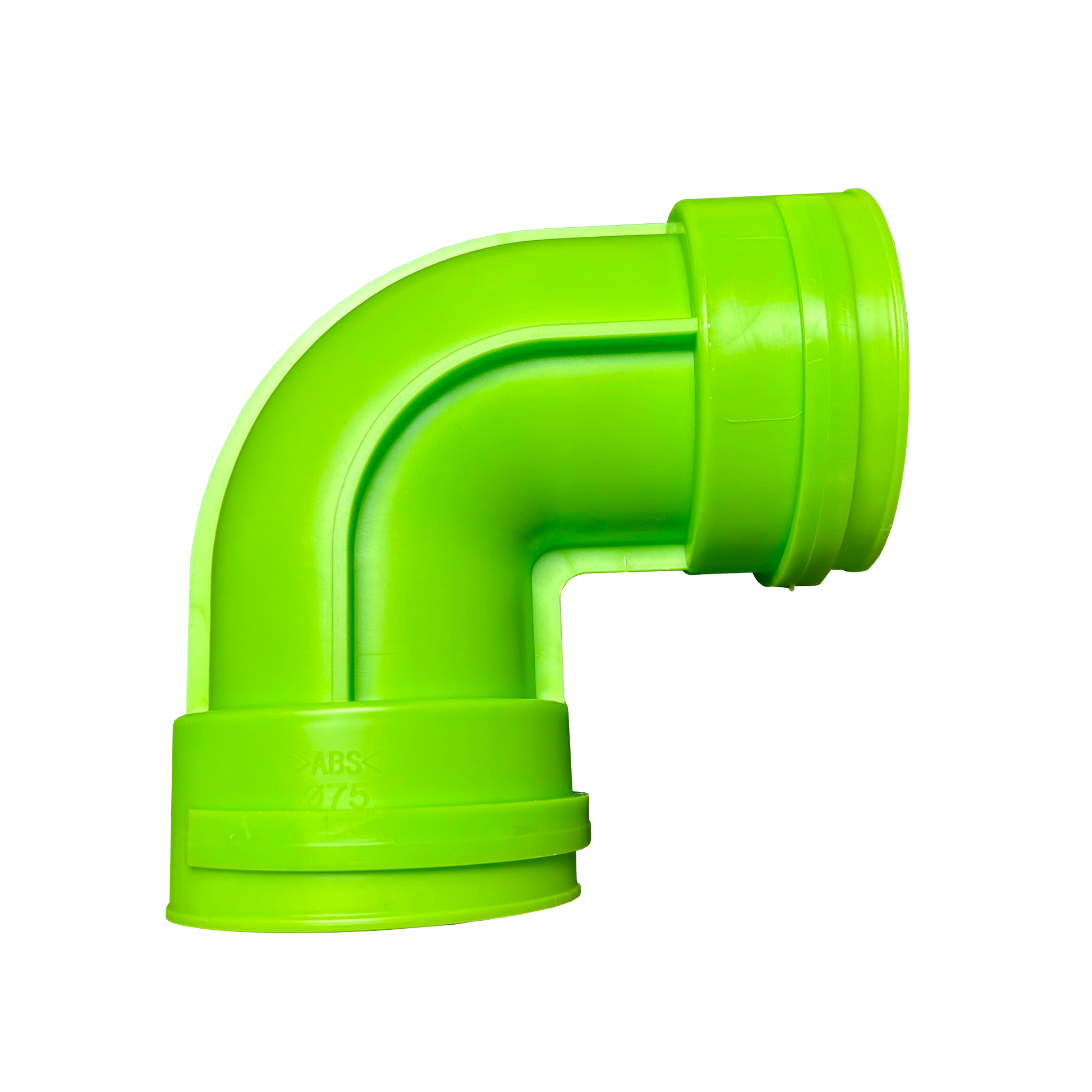

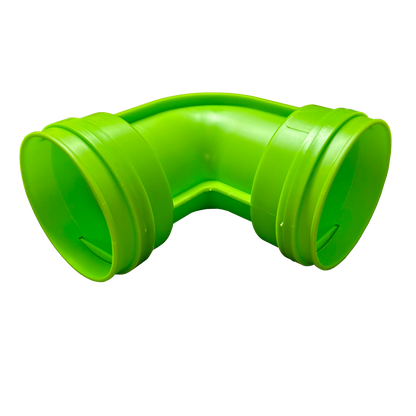

VS 75 - 90 bend

Product Part Number

P23

Product Overview

The VS 75mm 90° Bend is designed for use with 75mm ventilation ducting, providing a neat 90-degree change of direction where ductwork needs to be routed around corners, obstacles or within restricted installation spaces.

Manufactured from durable ABS plastic, the bend features a smooth curved profile to create a practical connection between compatible 75mm duct sections. Its compact design makes it particularly useful when routing ventilation ductwork through ceiling voids, service areas and other spaces where a straight duct run is not possible.

Finished in green to match the VS 75mm ducting range, the P23 is suitable for use within MVHR and other mechanical ventilation systems.

Key Features

• Designed for 75mm ventilation ducting
• Provides a 90° change of direction
• Durable ABS plastic construction
• Smooth curved bend profile
• Compact design for restricted installation spaces
• Suitable for residential ventilation installations
• Suitable for MVHR and mechanical ventilation systems
• Compatible with appropriate 75mm ducting and fittings
• Green finish to match the VS ducting range

Technical Specification

Product: VS 75mm 90° Bend
Product Part Number: P23
Nominal Diameter: Ø75mm
Bend Angle: 90°
Dimension A: 145mm
Dimension B: 145mm
Dimension C: 75mm
Dimension D: 80mm
Material: ABS
Colour: Green
Product Type: 90° Ventilation Duct Bend / Elbow
Application: Changing Direction of Ventilation Duct Runs
Suitable For: 75mm Ventilation Ducting
Compatible Systems: MVHR and Mechanical Ventilation Systems
