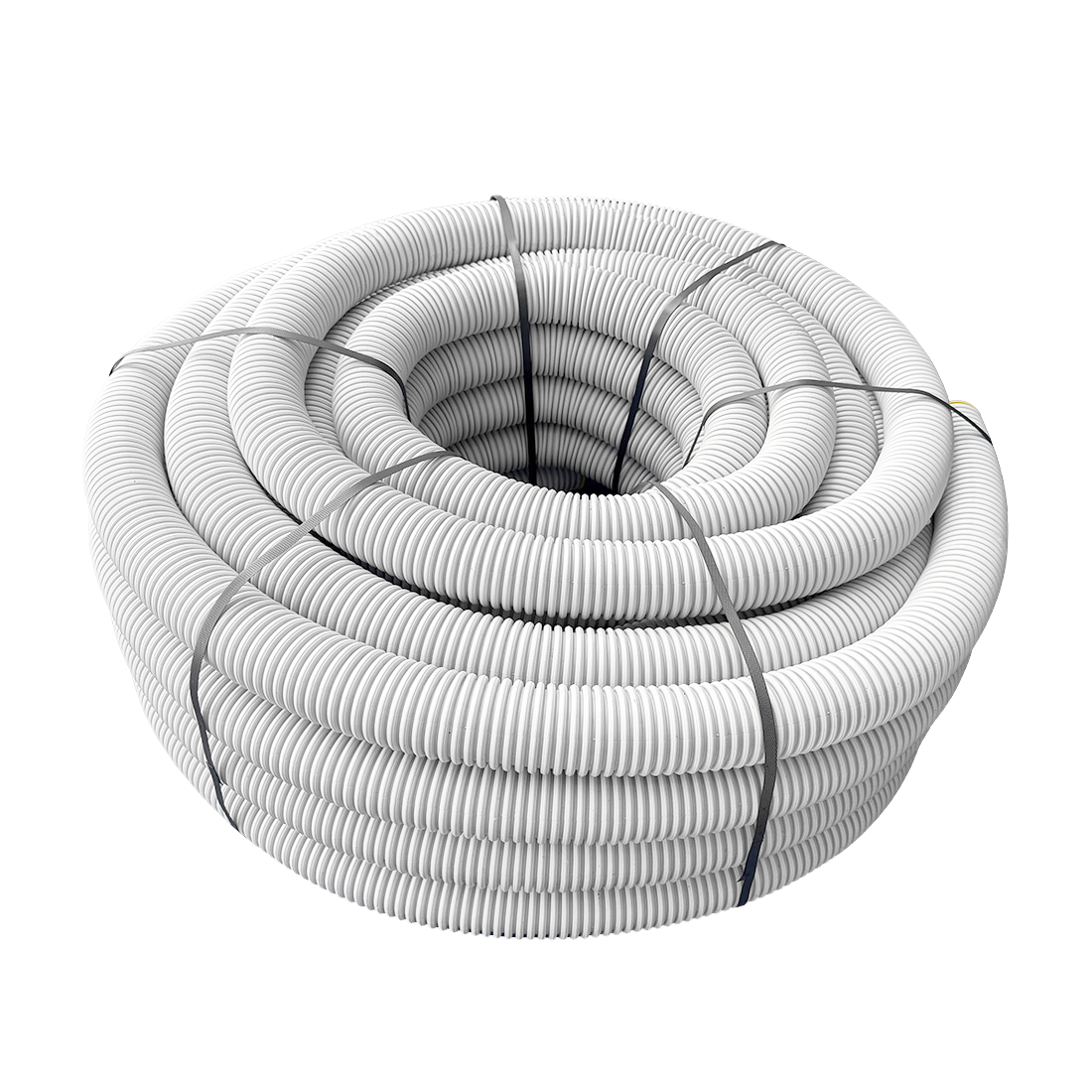

VS 75mm Radial CN x 20m antibacterial
VS 75mm Radial CN x 20m antibacterial
SKU : P4A-20
Overview
The VS 75mm Antibacterial Radial Duct is designed for use in radial MVHR and mechanical ventilation systems, creating individual airflow routes between the distribution manifold and each room terminal. Its flexible, semi-rigid construction allows it to be routed through floors, ceilings and service voids while helping to reduce the number of joints required throughout the installation.Out of Stock
Couldn't load pickup availability
Description
Product Part Number
P4A-20
Product Overview
The VS 75mm Antibacterial Radial Duct is designed for use in radial MVHR and mechanical ventilation systems, creating individual airflow routes between the distribution manifold and each room terminal. Its flexible, semi-rigid construction allows it to be routed through floors, ceilings and service voids while helping to reduce the number of joints required throughout the installation.
The antibacterial internal surface helps support a clean and hygienic air-distribution system, while the smooth inner bore promotes efficient airflow and straightforward maintenance. Supplied in a 20m coil, the duct can be cut to the required length on site and connected to compatible 75mm manifolds, plenums and fittings, providing a practical solution for residential ventilation installations.
Technical Specification
| Specification | Details |
|---|---|
| Product code | QV75P-VS-20 |
| Product type | Antibacterial semi-rigid radial duct |
| Application | MVHR, MEV and mechanical ventilation systems |
| Nominal outside diameter | 75mm |
| Coil length | 20m |
| Material | High-density polyethylene (PE-HD) |
| Construction | Flexible, corrugated double-wall pipe |
| Internal surface | Smooth antibacterial lining |
| Airflow use | Supply or extract air |
| Installation | Individual radial runs between manifolds and room terminals |
| Connection type | Compatible 75mm radial fittings |
| Maintenance | Smooth bore helps reduce dirt deposits |
| Suitable installation areas | Floors, ceilings and service voids |
| Suitable systems | Residential ventilation installations |
