Xpelair VX100-SP Bathroom Fan - Rated @ 21l/s

Xpelair VX100-SP Bathroom Fan

Part Number: 92935AW

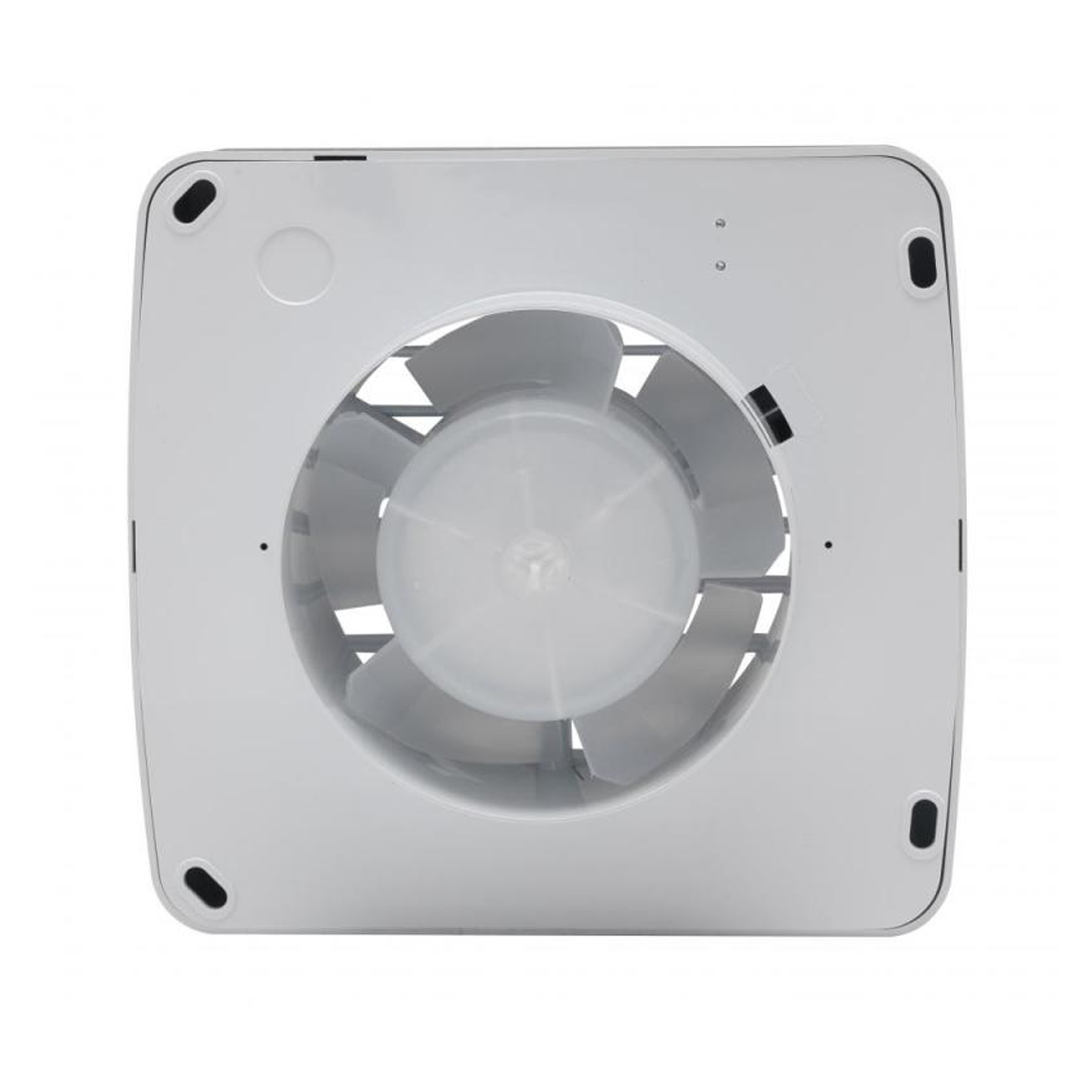

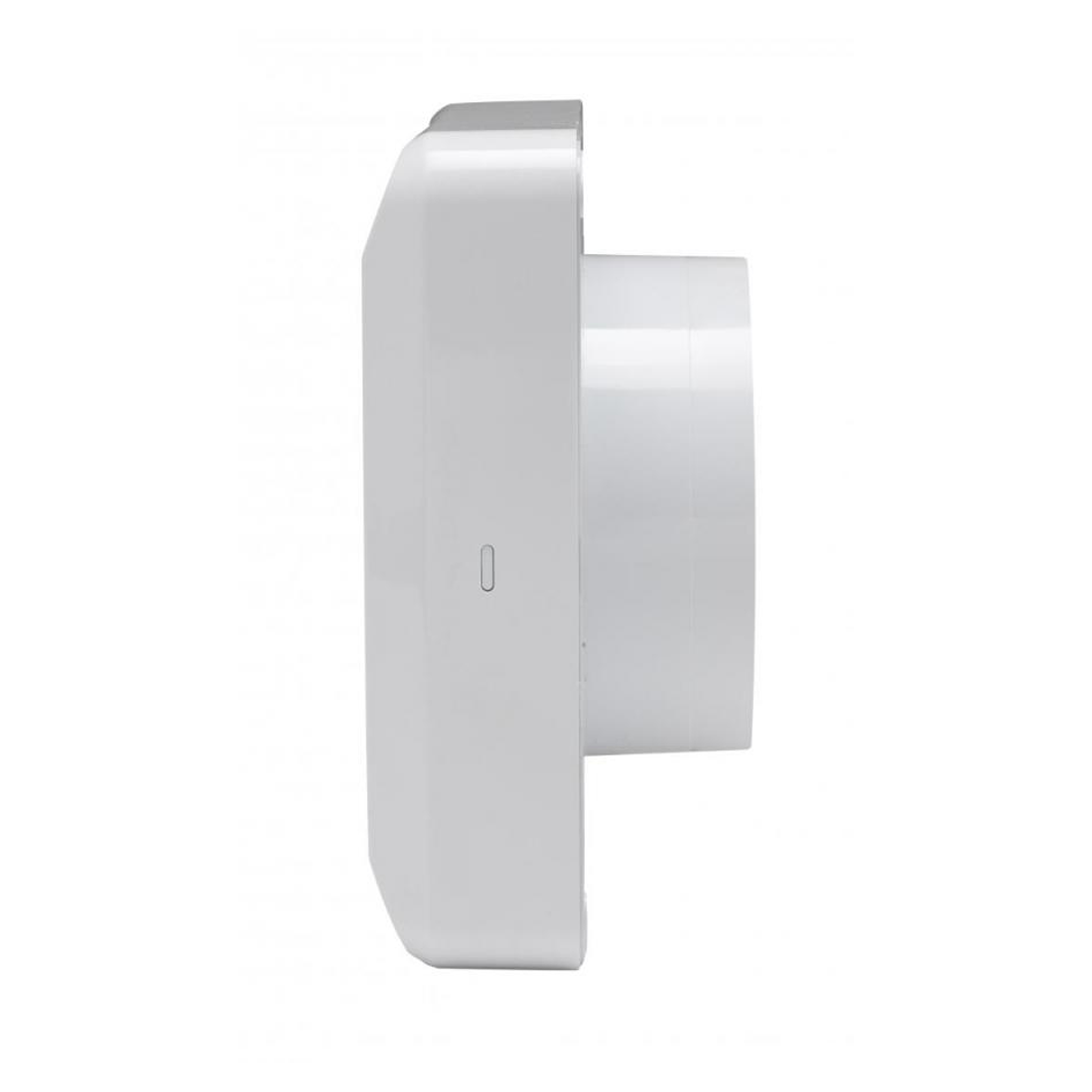

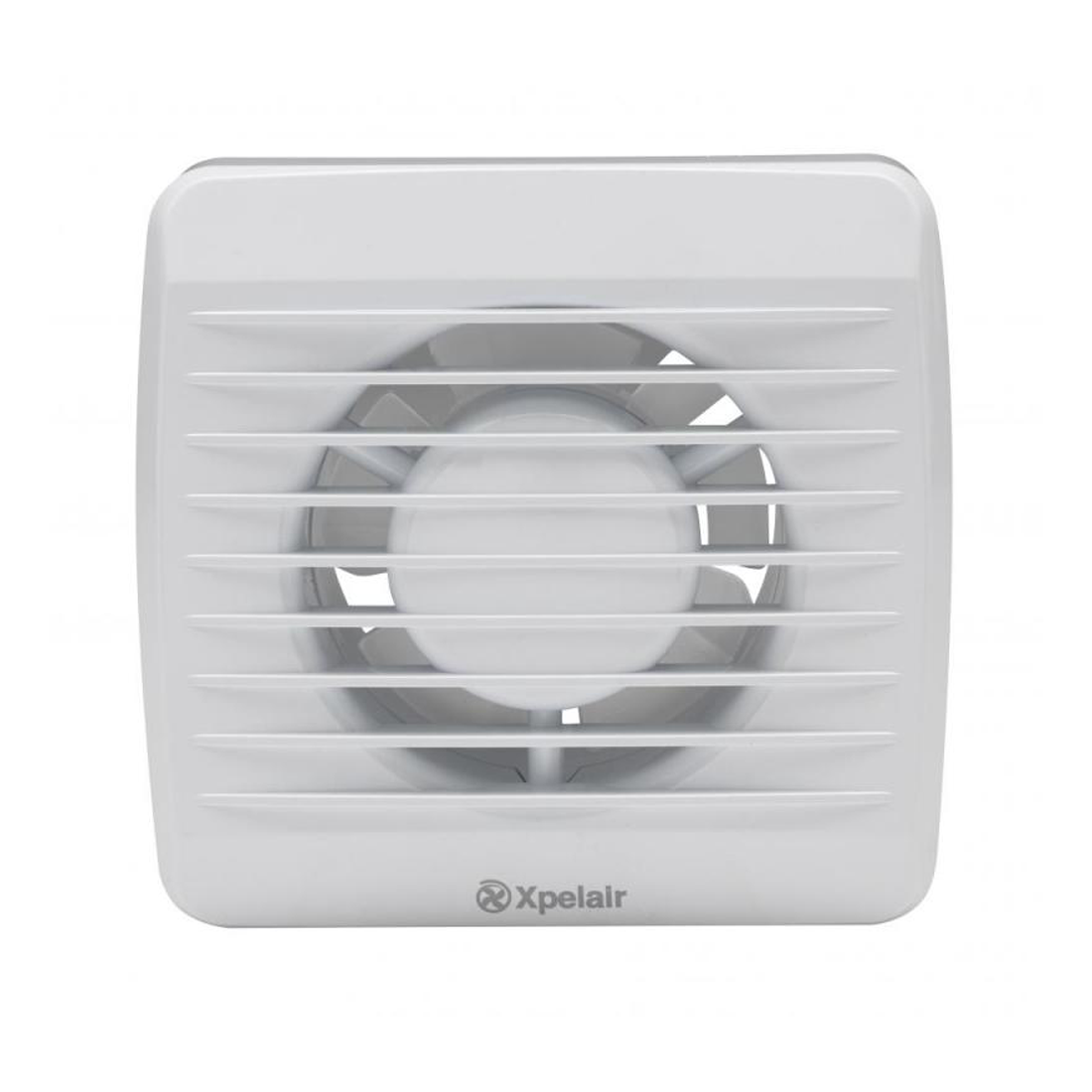

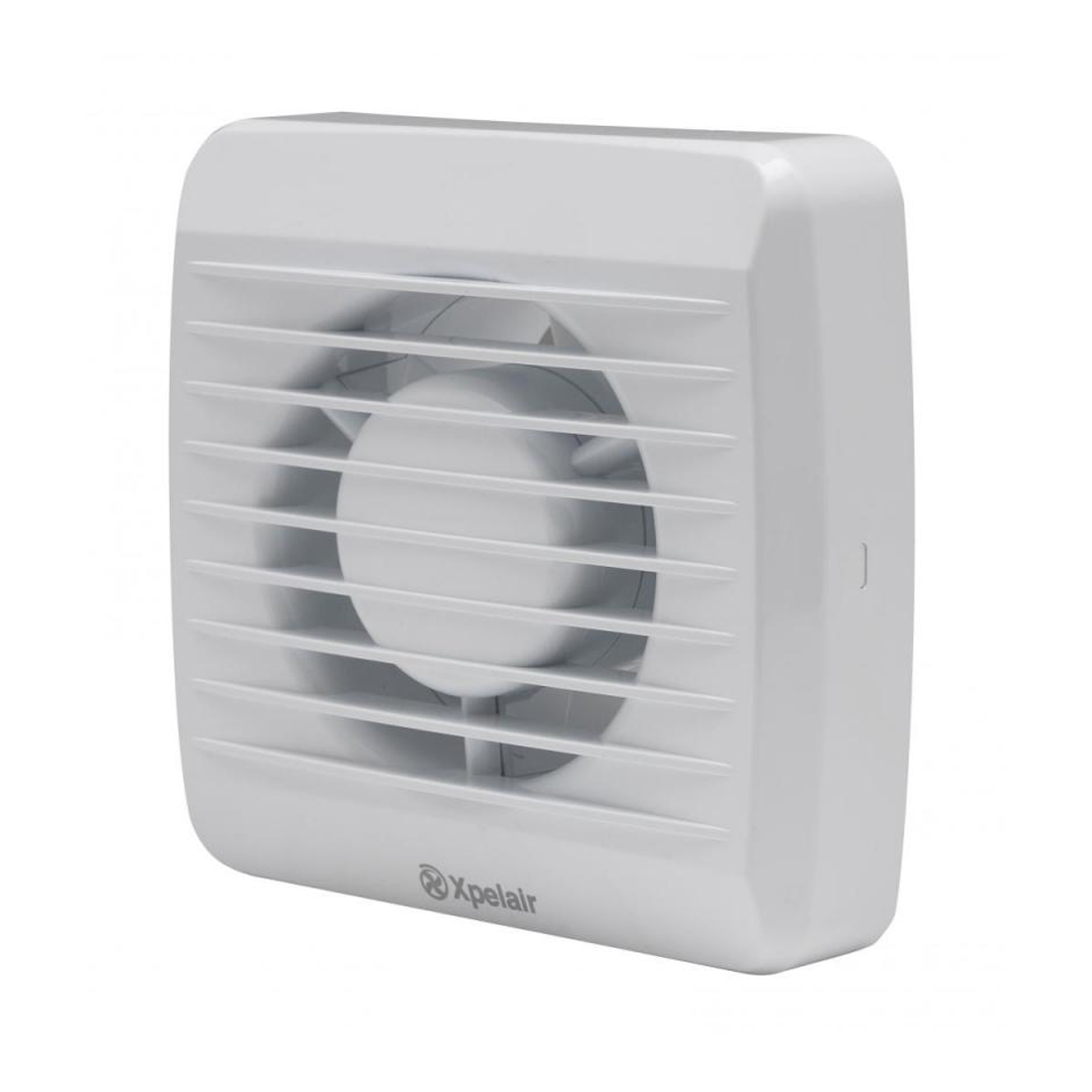

The VX100 Axial Extract Fan with Short Spigot (Standard) is a compact and efficient 100mm bathroom ventilation solution, designed specifically for shallow wall or ceiling installations. Featuring a short spigot, this fan is ideal where space is limited, making it well suited to bathrooms, shower rooms, and en-suites.

The fan delivers reliable single-speed extraction and is powered by an energy-efficient AC motor with thermal cut-out protection. Its lubricated-for-life motor ensures long-term, maintenance-free operation. As a Standard model, the VX100 is operated via an external switch, such as a lighting circuit, and switches off automatically when the external control is turned off.

Compliant with Building Regulations Part F and Scottish Building Standards, the VX100 provides dependable ventilation performance in domestic wet areas.

Key Features

General

- Product Name: VX100 Axial Extract Fan with Short Spigot – Standard

- Product Model Number: VX100-SP

- Fan Type: Axial extract fan

- Control Type: External switch operation

- Timer Function: No

- Humidistat: No

Performance

- Airflow Performance: 76 m³/h

- Operating Speed: Single speed

Electrical

- Power Consumption: 12W

- Loading / Wattage: 0.012 kW

- Motor Type: AC motor

- Motor Protection: Thermal cut-out

- Motor Bearings: Lubricated for life

Installation

- Spigot Size: 100mm (4")

- Spigot Length: Short spigot (for shallow installations)

- Mounting Options: Wall or ceiling mounted

Construction & Finish

- Colour: White

- Finish: Glossy

- Material: ABS plastic

Ingress Protection

- IP Rating: IPX4

Dimensions & Weight

- Width: 164 mm

- Height: 89 mm

- Depth: 159 mm

- Weight: 0.52 kg

Compliance & Identification

- Compliance: Building Regulations Part F, Scottish Building Standards

- EAN: 5013562929356

Ideal for residential spaces, this fan ensures effective extraction while maintaining a low-profile design, offering a practical and affordable solution for bathrooms and other wet areas.
